EF3S03/EF3S04 Low Power Square Projector
The all-glass surface design features simplicity and generosity, which is more suitable for current and future architectural trends. The luminary adopts hidden modular design. Unique optimized heat dissipation structure prolongs the service life of the luminary. Available with vertical, horizontal and multi-directional adjustment of the lamp head. The series is available in a wide range of sizes, wattages and beam angles.

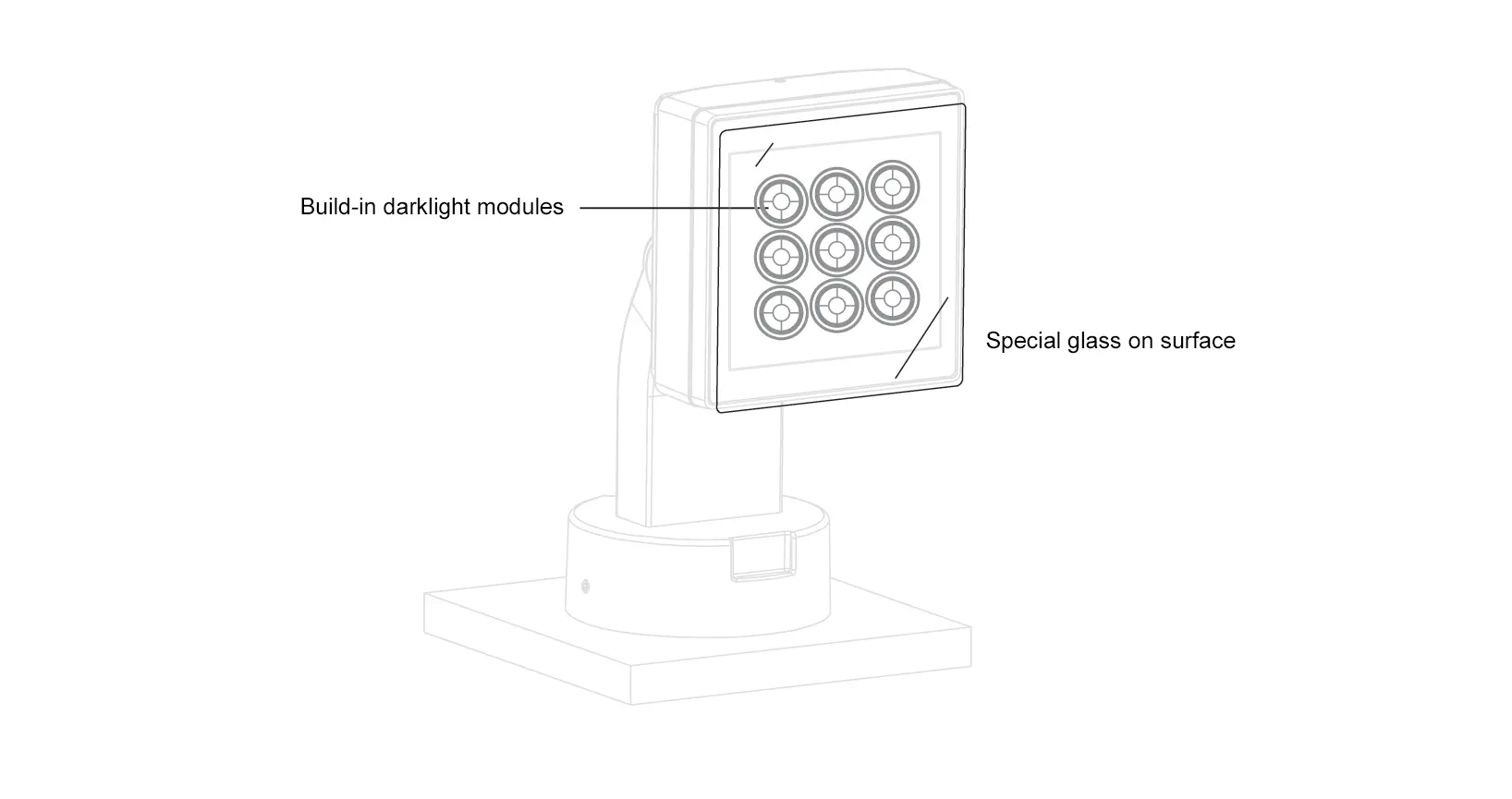

Built-in anti-glare module maximizes to reducte the glare damage, the surface of the special glass to ensure light transmittance rate at the same time and eliminate the surface of the stray light
Multiple beam angle options, 4° extra-narrow beam angle

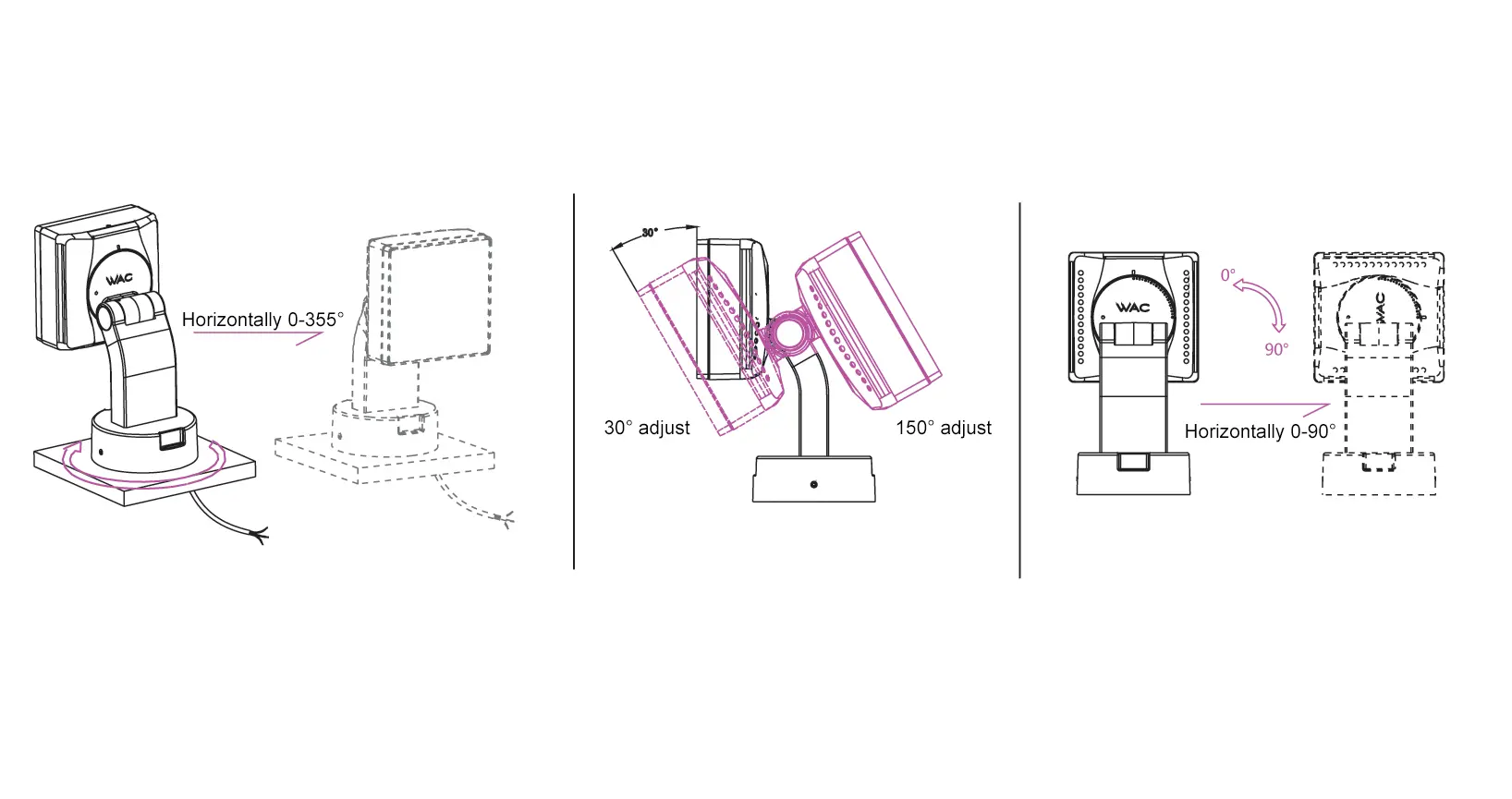

Single light supports 0-355° horizontal, -30°-150° vertical and 0-90° head adjustment.
Model | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF3S03 | 08 08W(Max) | 3 | 526 | EL ON-OFF ML DMX512 Dimming | V 4° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF3S04 | 10 10W(Max) | 4 | 604 | EL ON-OFF 220V AC Power Supply ML DMX512 Dimming | S 6° 1 13° 2 20° 3 30° J 8° x 27° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF3S04 | 10 10W(Max) | 4 | 305 | ML DMX512 Dimming 220V AC Power Supply | 1 19° 2 29° 3 37° 5 53° F 23°x 36° | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) | BK Black |
Example: EF3S04-10ML-1F30BK
