ME19F

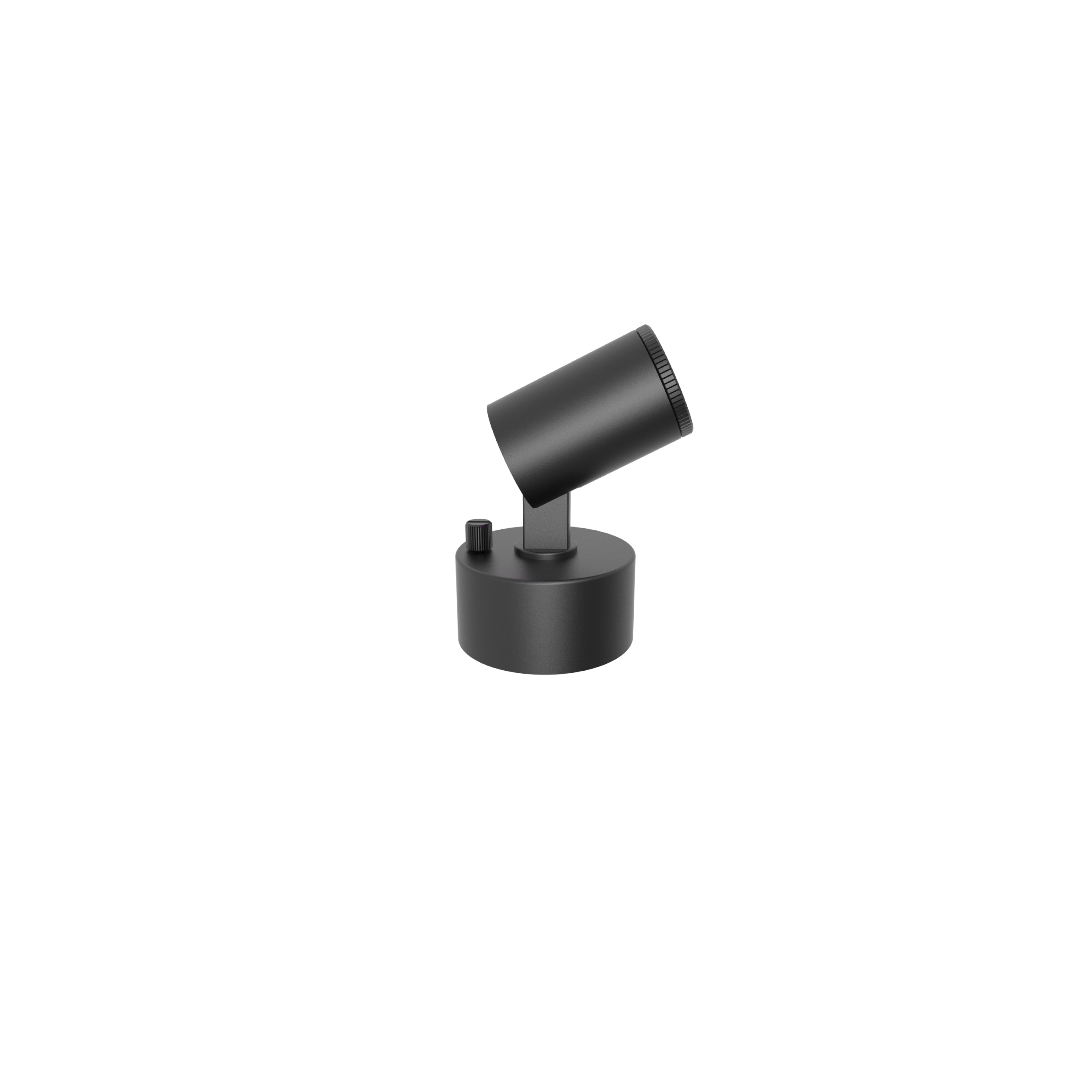

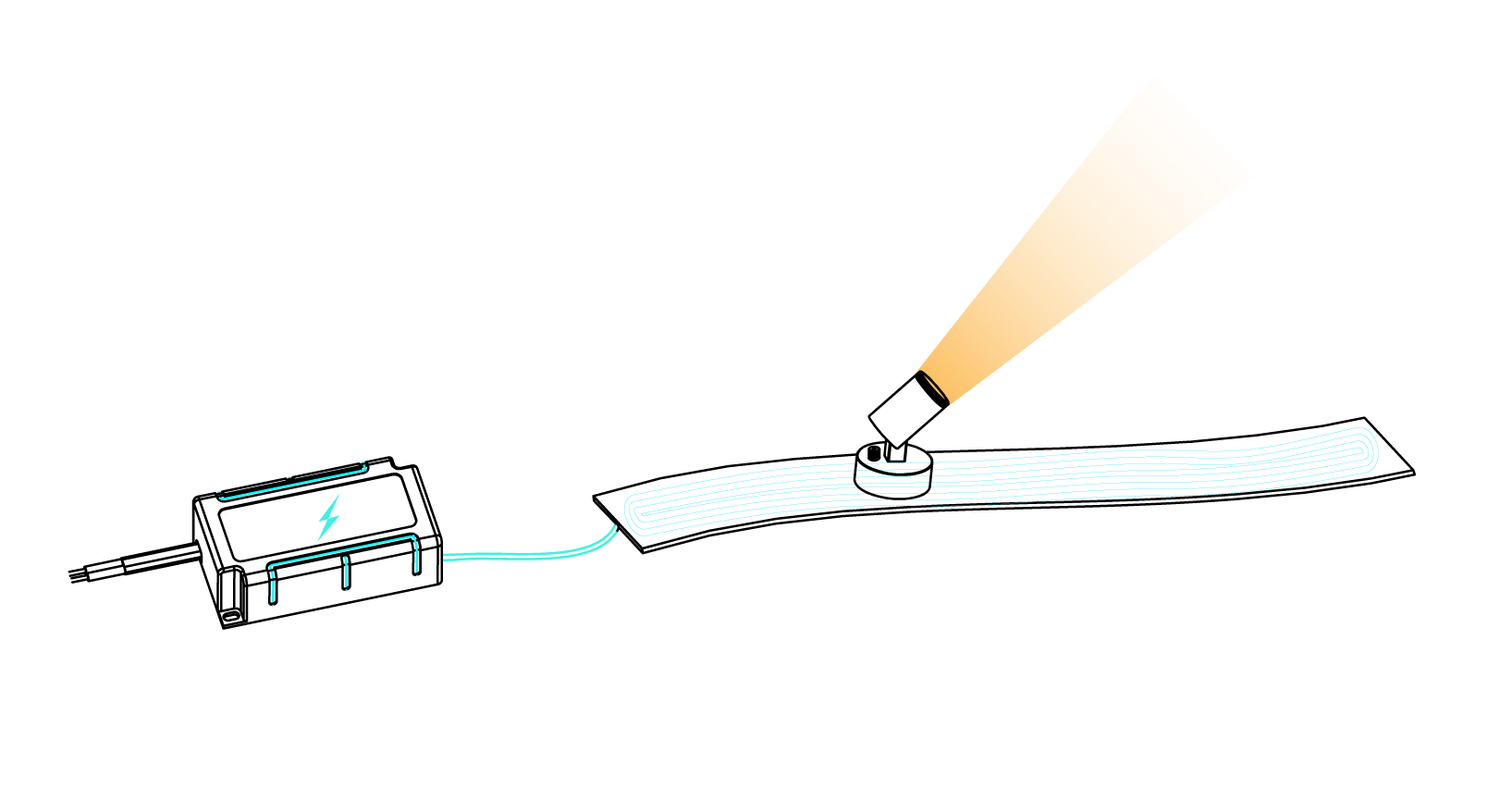

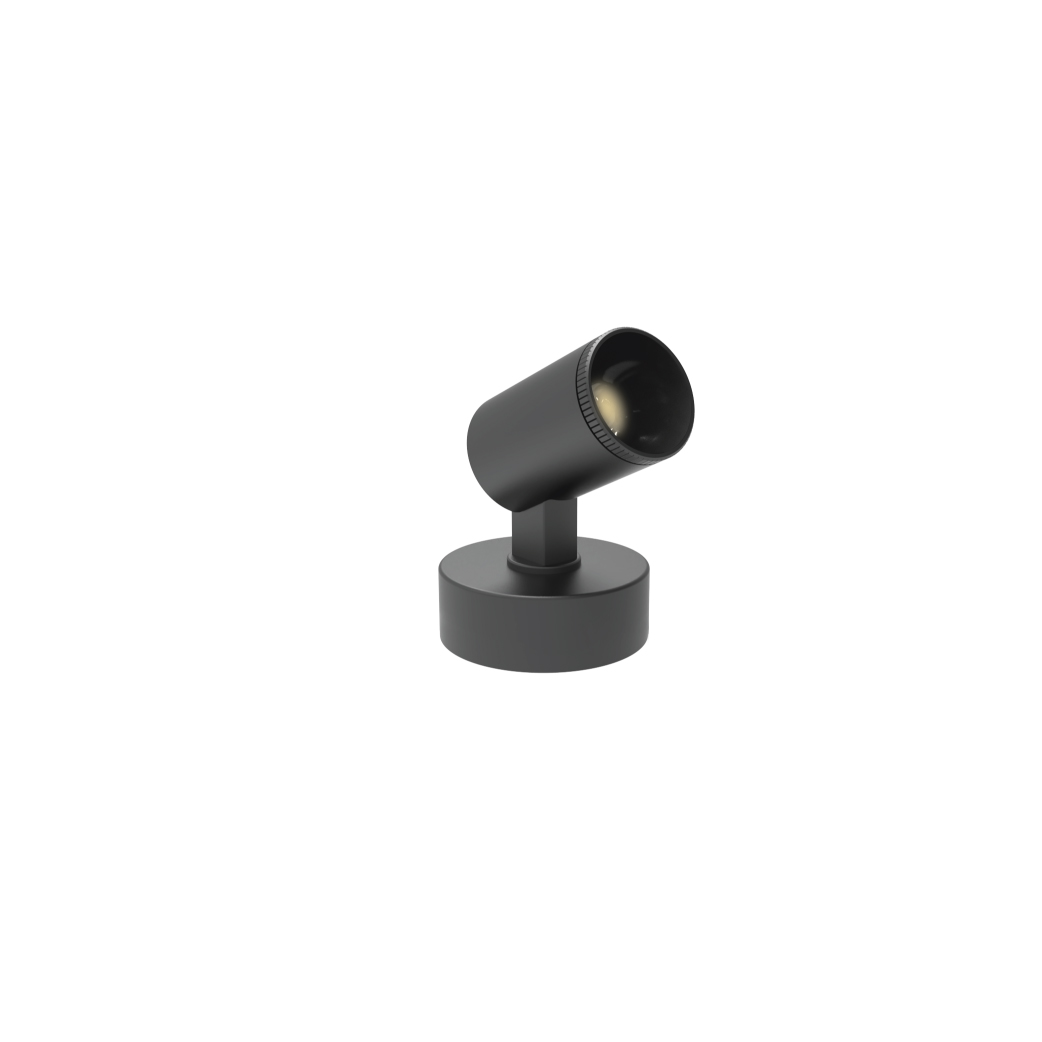

ZIGGY series is a newly developed wireless powered showcase lighting. The design of the ZIGGY series is simple and compact. The system consists of a “transmitter strip” and a “ showcase sensors fixture". The maximum distance between the transmitter strip and the fixture is 10 mm and cannot be separated by metal or conductive material. It is recommended to have 3 or less fixtures per transmitter strip.
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ME19F ZIGGY | LD01 1W | E No-dimming | F 8-40° | 9 Ra90 A Ra97 | 30 3000K 40 4000K | BK Black |
Model | Length | Finish |
ME19F ZIGGY | 420 420*53*3.2，mm（L*W*H） 840 840*53*3.2，mm（L*W*H） | BK Black |
Note: Fixture and transmitter tape need to be ordered separately. A wire length of 500mm is required between the transmitter strip and the connected electrical appliance, and it must be connected through a quick-connect connector (the required hole is Φ10mm). Customized dimensions of transmitter tape can be ordered according to site specifications.
