Fuego Compact EIR4TF/EIR2TF

Fuego Compact Φ36

Fuego Compact Stainless Steel Body Finish. Compact round design, IP67/IP68 rated, IK08 impact resistant. Resistant to pressurization up to 500 kg, pre-buried cylinder mounting, snap-on mounting.

Features

Multiple Optical Configurations

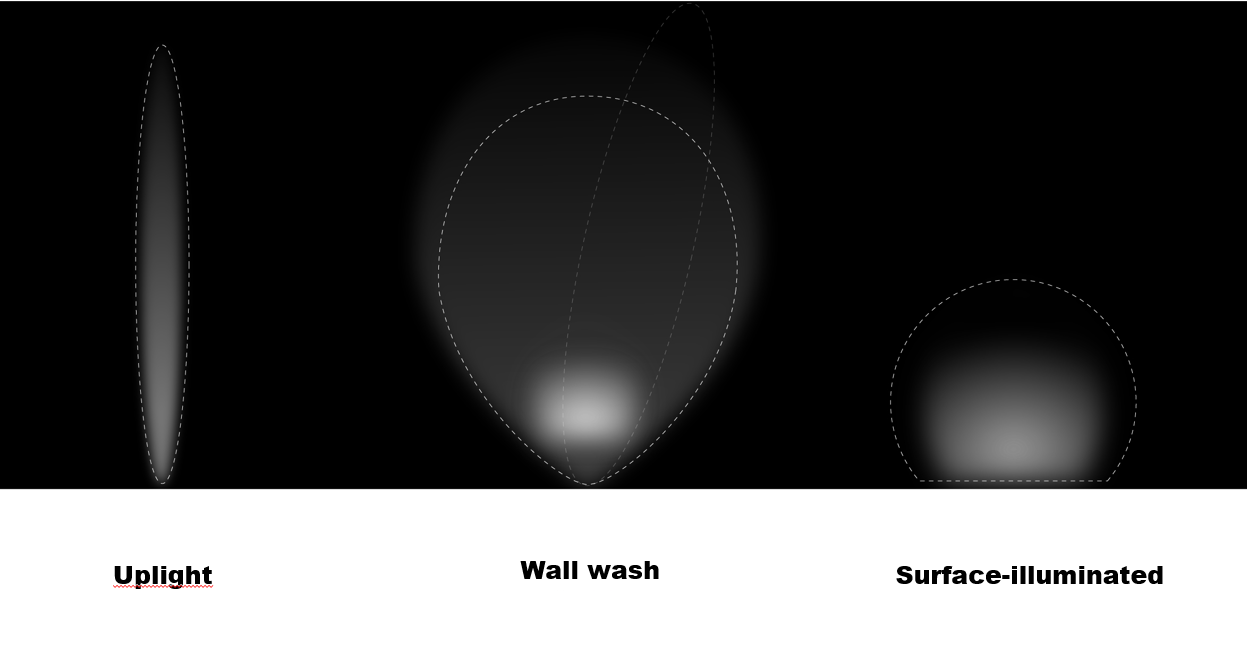

Uplight/ Wall wash/ Surface-illuminated

Integral Molding Technology

Built-in anti-siphon injection molding device to enhance the waterproof performance of luminaires

Specifications

Model

Power

(W)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

EIR2TF-02

2(Max)

66

ET ON-OFF

12-24V DC Power Supply

MT DMX512 Dimming

12-24V DC Power Supply

DT 0-10V Dimming

12-24V DC Power Supply

S 6°

1 13°

2 21°

4 40°

W Wall Washer

27 2700K

30 3000K

40 4000K

SS  Stainless Steel

Model

Power

(W)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

EIR2TF-02

2(Max)

16

ET ON-OFF

12-24V DC Power Supply

P Surface-illuminated

27 2700K

30 3000K

40 4000K

SS  Stainless Steel

Model

Power

(W)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

EIR2TF-02

2(Max)

16

MT DMX512 Dimming

12-24V DC Power Supply

P Surface-illuminated

F30 RGBW W(3000K)

F40 RGBW W(4000K)

F60 RGBW W(5700K)


SS  Stainless Steel

Model

Power

(W)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

EIR4TF-02

2(Max)

66

ET ON-OFF

12-24V DC Power Supply

MT DMX512 Dimming

12-24V DC Power Supply

DT 0-10V Dimming

12-24V DC Power Supply

S 6°

1 13°

2 21°

4 40°

W Wall Washer

27 2700K

30 3000K

40 4000K

SS  Stainless Steel

Model

Power

(W)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

EIR4TF-02

2(Max)

16

ET ON-OFF

12-24V DC Power Supply

P Surface-illuminated

27 2700K

30 3000K

40 4000K

SS  Stainless Steel

Model

Power

(W)

Max Lumens(lm)

Control Systems

Beam

CCT

Finish

EIR4TF-02

2(Max)

16

MT DMX512 Dimming

12-24V DC Power Supply

P Surface-illuminated

F30 RGBW W(3000K)

F40 RGBW W(4000K)

F60 RGBW W(5700K)

SS  Stainless Steel

Example: EIR4TF-02ET-P27SS


Documents
