TL41HLM/TL42HLM/TL43HLM

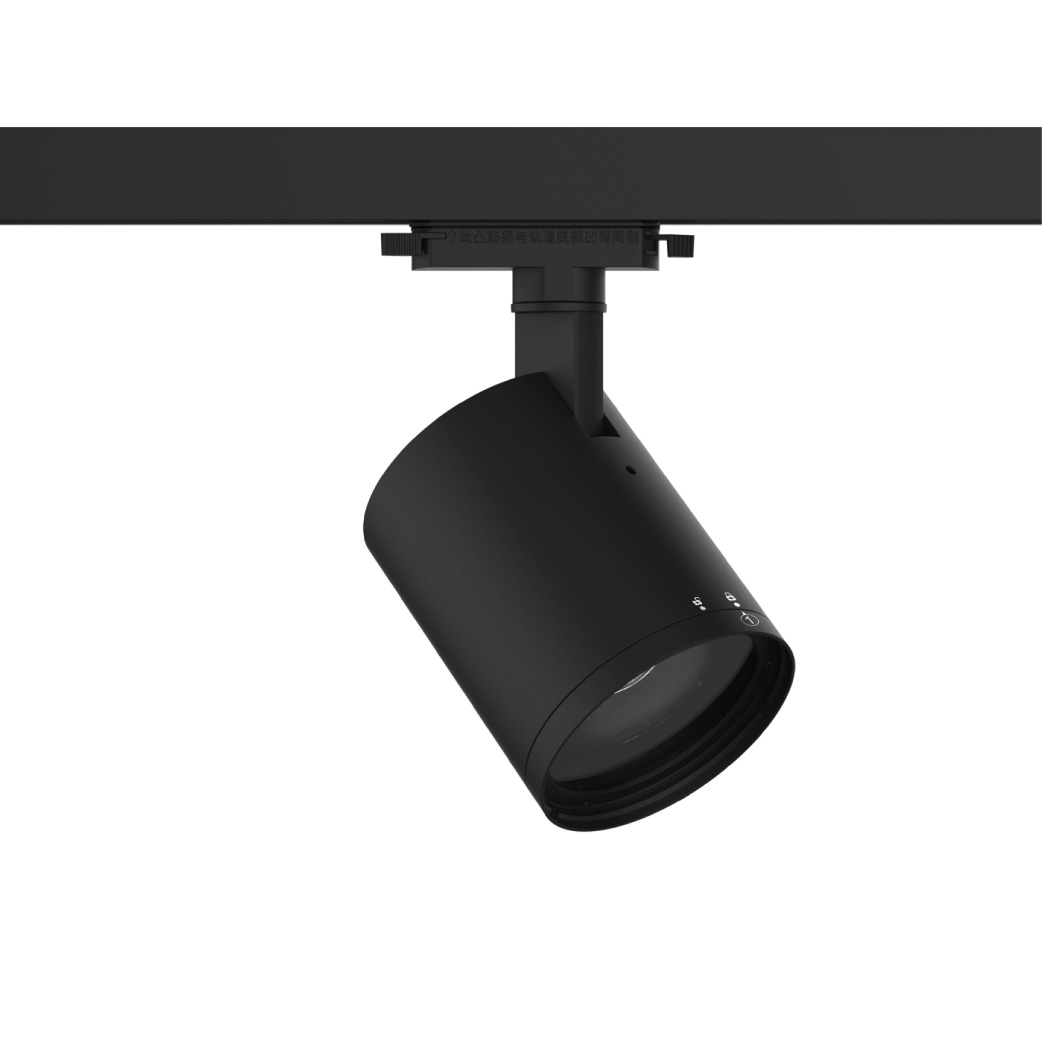

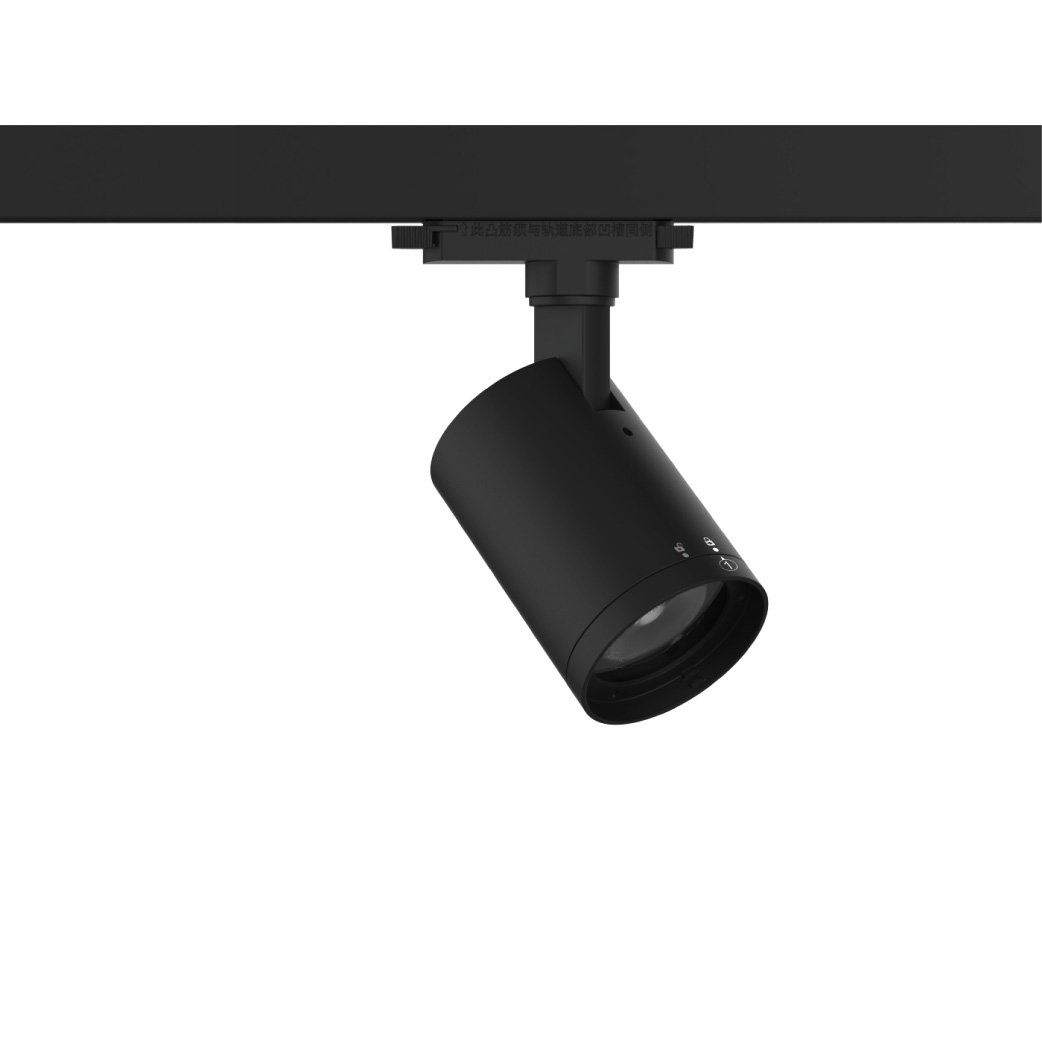

COB High-Power Integrated Surface Light Source Designed to fit W three-circuit tracks, this fixture features a refined appearance with a die-cast aluminum housing and no visible heat sink. It adopts a COB light-emitting module, offering multiple standard CCT options with excellent color rendering performance. Various beam angles are available, and accessories can be hand-replaced easily to achieve different lighting effects.

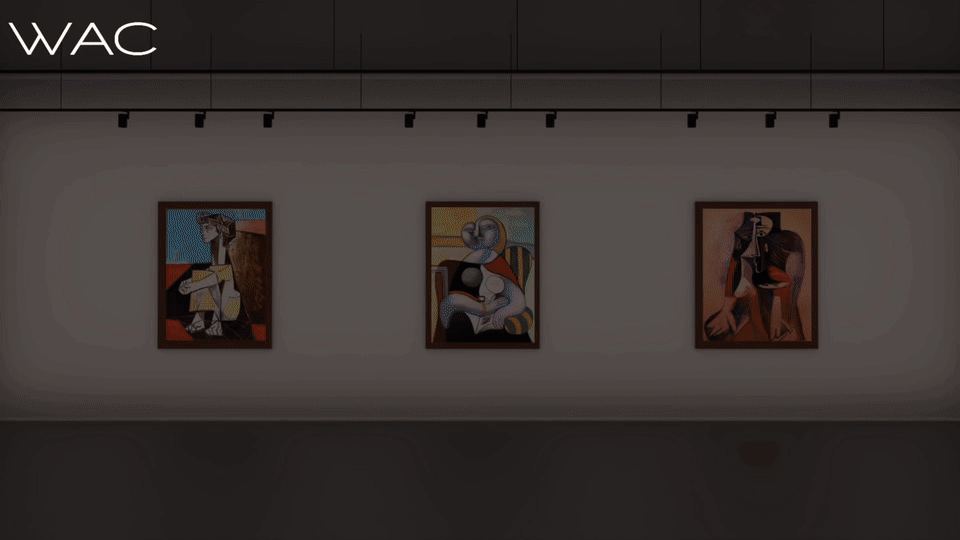

Two control approaches bring maximum flexibility: System-Wide Presets: Instantly create base lighting environments with one click. Precision Spotlighting: As exact as surgical lighting, enabling pinpoint adjustment of a single luminaire.

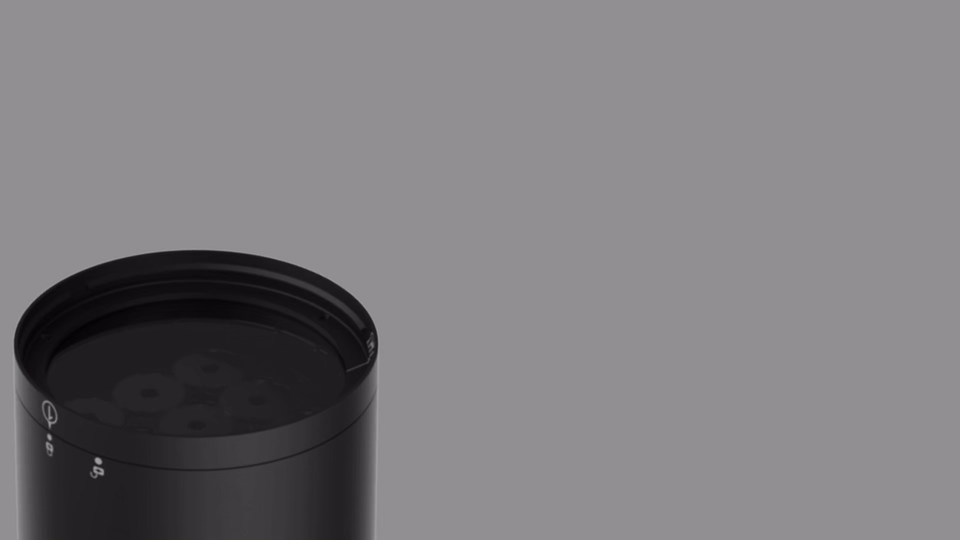

A wide range of accessories can be configured and freely stacked. Ingeniously designed alignment markers ensure effortless positioning, making installation quick and highly efficient.

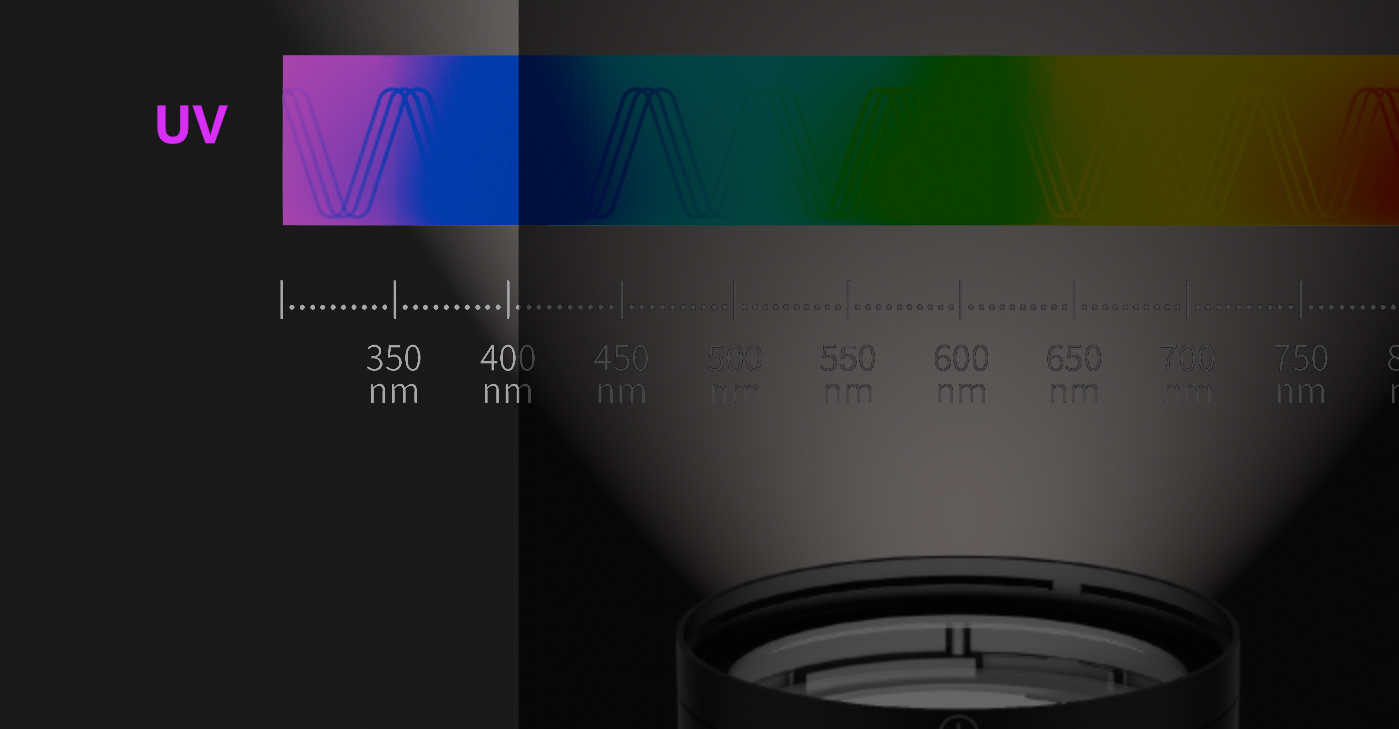

The SWALLOW III series inherits WAC’s renowned museum lighting expertise, delivering exceptional performance in both artifact preservation and visual comfort. UV Protection: UV < 2 μW/lm Flicker-Free Illumination: Dual-engine design with PstLM ≤ 0.5 & SVM < 0.1 achieves zero-flicker lighting beyond human perception. Exceeding Standards: Key performance indicators surpass national requirements by threefold, ensuring that artifacts are preserved within an absolutely secure light environment.
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL41H SWALLOW III | LM09 LM12 | O On-board D 0-10V+On-board A DALI | 1 15° 2 24° 3 36° 5 55° E 15*55° G 25*55° W Wall Washer | 9 90 A 97 | 30 3000K 35 3500K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL42H SWALLOW III | LM12 LM18 LM25 | O On-board D 0-10V+On-board A DALI | 1 15° 2 24° 3 36° 5 55° E 15*55° G 25*55° W Wall Washer | 9 90 A 97 | 30 3000K 35 3500K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL43H SWALLOW III | LM24 LM32 LM40 | O On-board D 0-10V+On-board A DALI | 1 15° 2 24° 3 36° 5 55° E 15*55° G 25*55° W Wall Washer | 9 90 A 97 | 30 3000K 35 3500K 40 4000K | WT White BK Black |
