ADLT31/ADLT41 3/4"

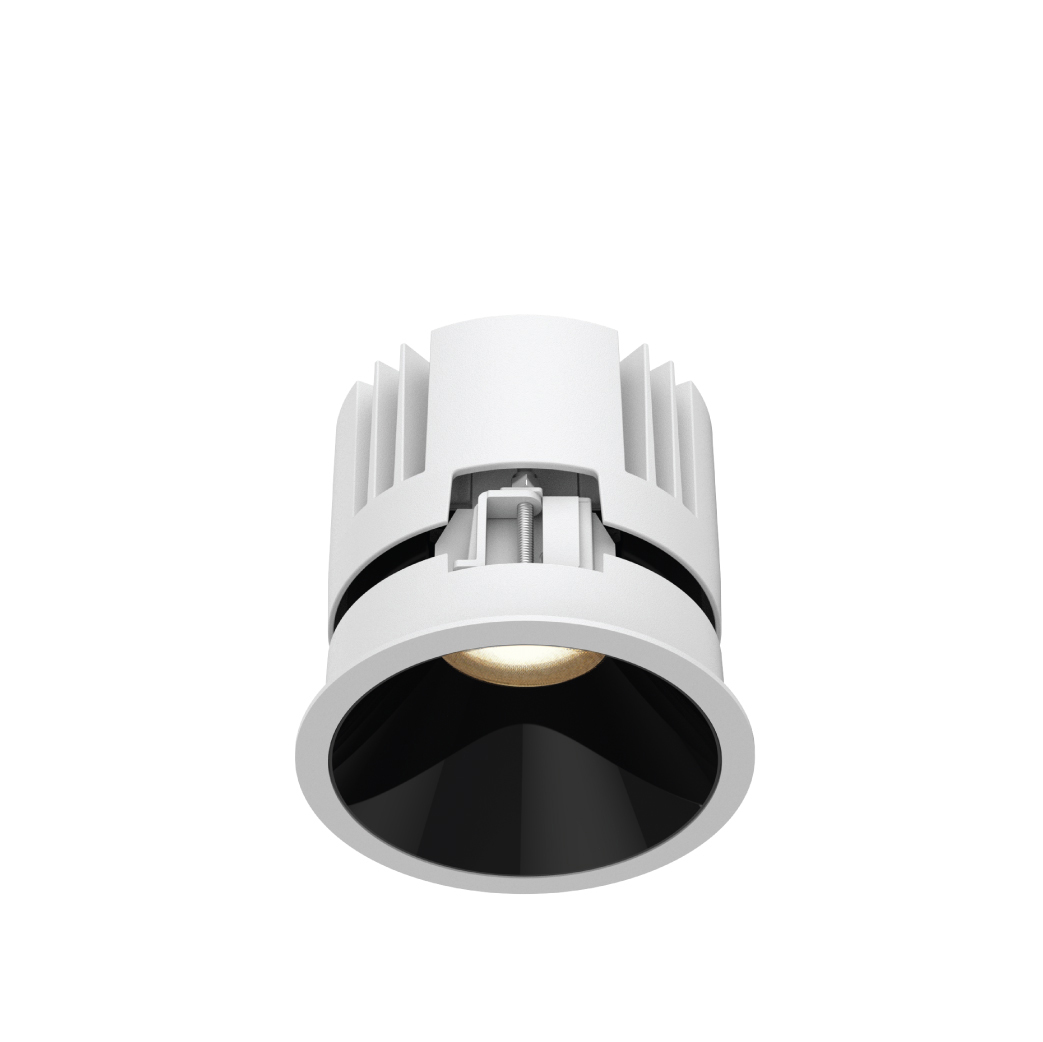

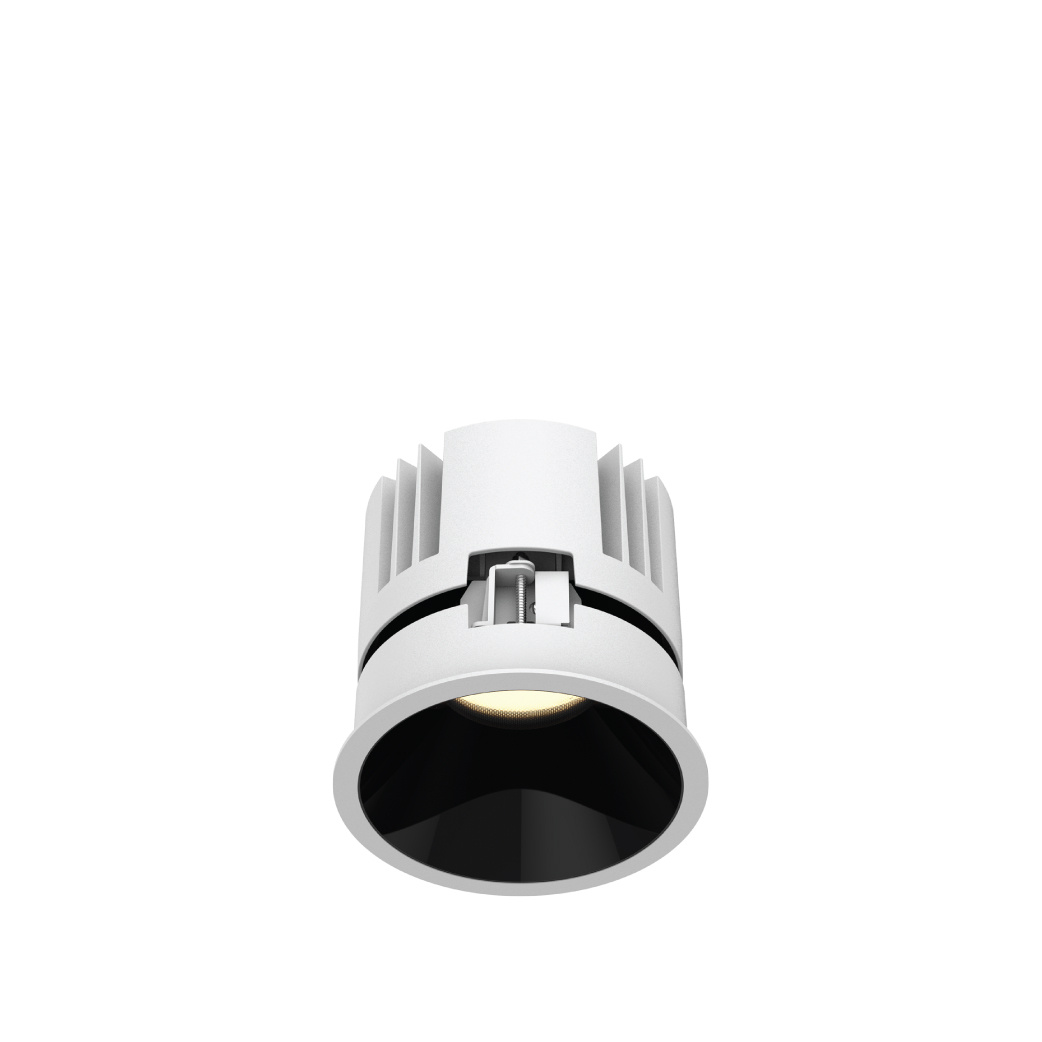

The Round Narrow Trim Recessed Downlight features a streamlined appearance with a precise lens and black mirror reflector design to ensure the light output while still achieving the ultimate anti-glare effect. The sealed light source cavity is designed to minimize the effect of humid environment on its performance. Available in removable and replaceable reflectors or optical accessories, which greatly enhances the accessibility in the field.

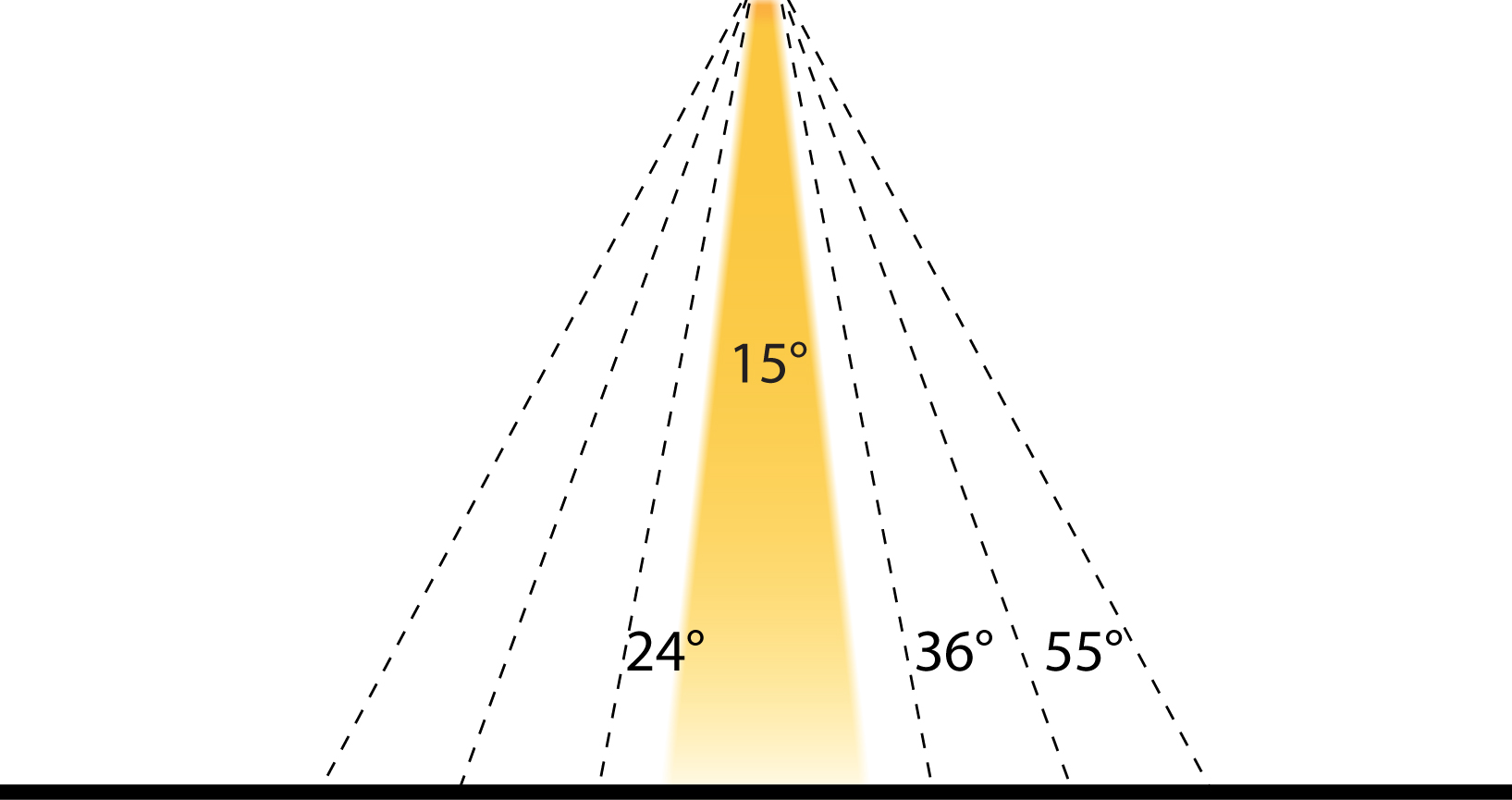

Available in 15°, 24°, 36°, and 55° beam angles to meet diverse lighting needs.
When actually lit, the light spot is clean and soft, with no stray light.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 4 4” | 1 Round Trim | LM18 COB 18W | N No Driver A DALI | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Example: ADLT41-LM18E230SWT
