ADLT31/ADLT41 3/4"

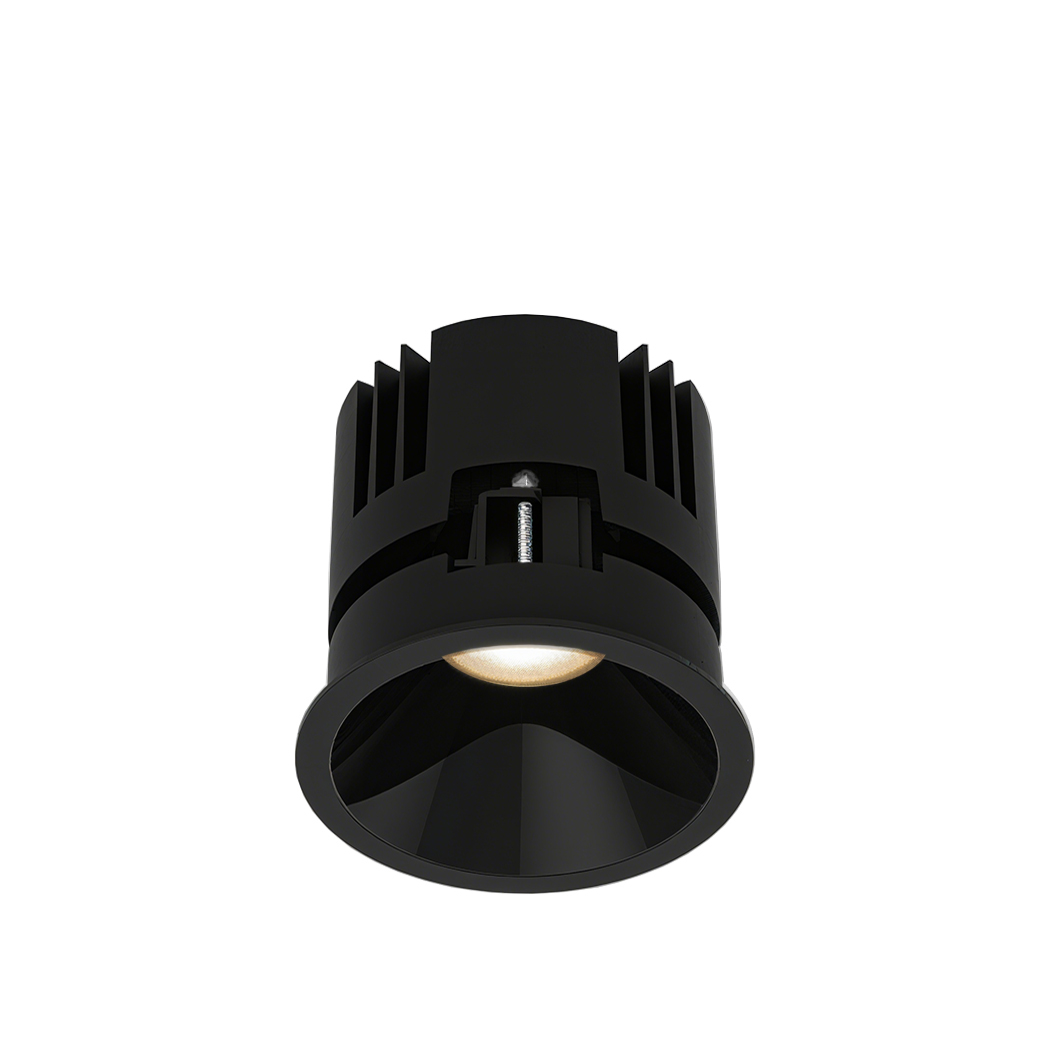

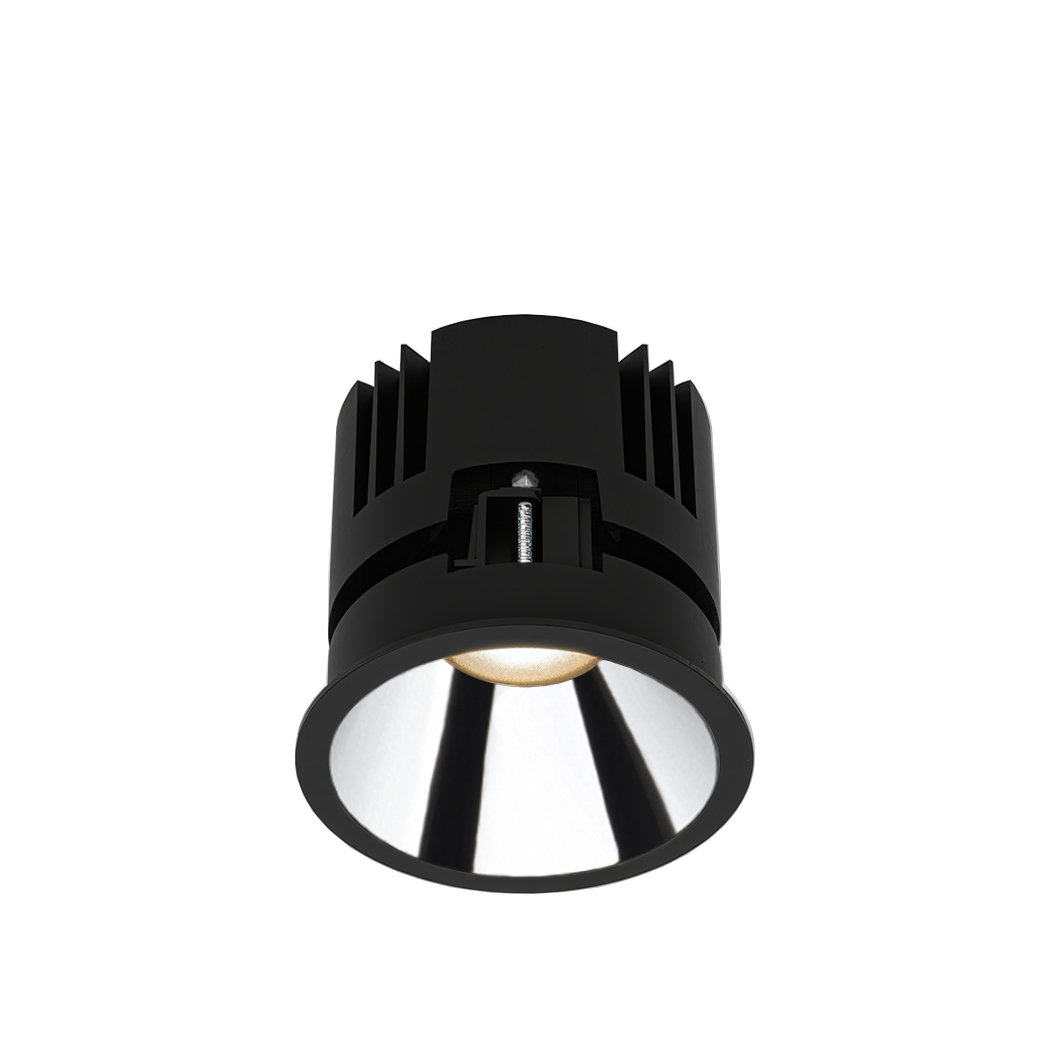

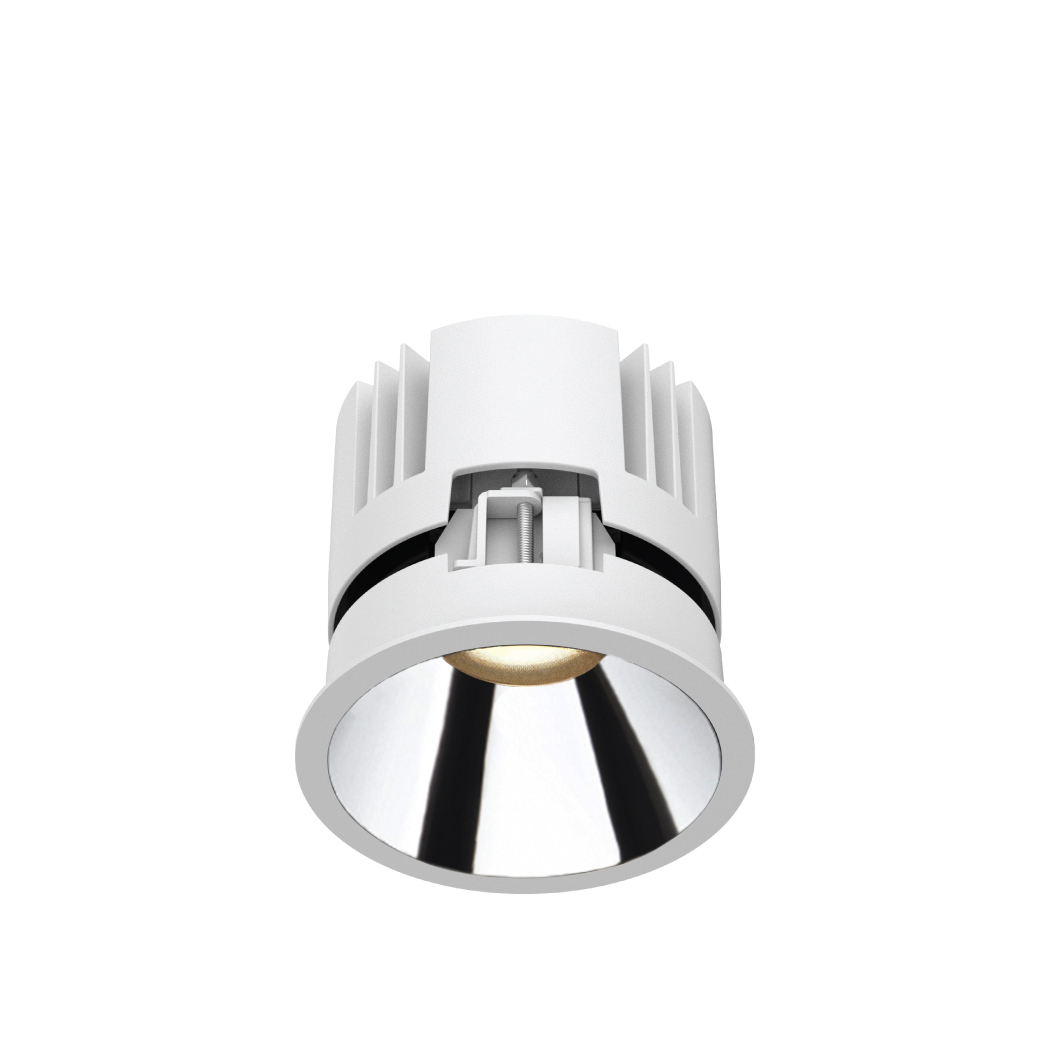

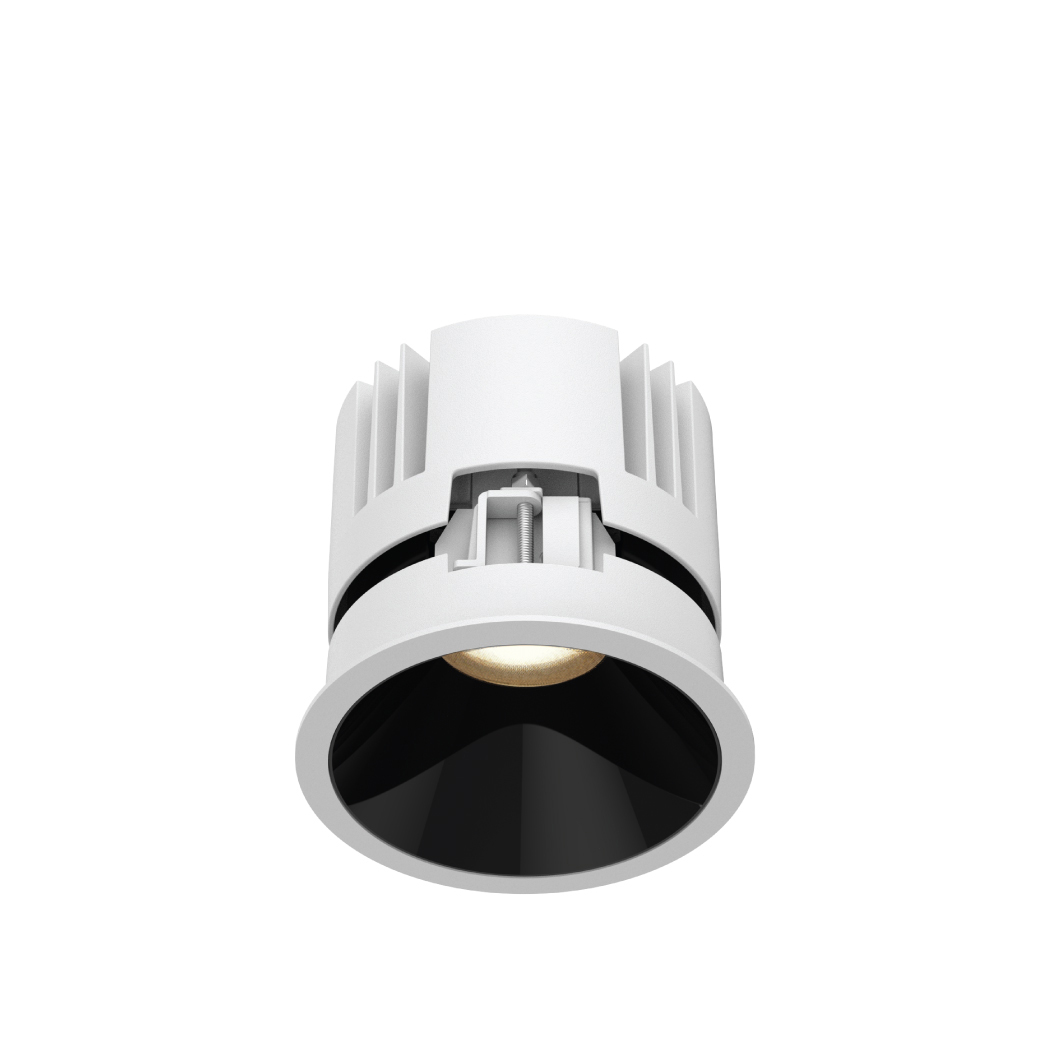

VOLTA II series LED round narrow recessed downlight, streamlined appearance, with precise lens and black mirror reflector design. It guarantees light output while still achieving the ultimate anti-glare effect, and the light source cavity is sealed to minimize the impact of humid environment on its performance. Free to remove and replace the reflector or optical accessories, greatly improving the convenience of the site. Mainly suitable for hotel and commercial indoor places.
The series offers four optical configurations — 15°, 24°, 36°, and 55° — to meet diverse lighting requirements.
Actual lighting demonstration shows a clean and uniform beam with no stray light.
VOLTA
Hubei Dream Plaza
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT | 4 4” | 1 Round Trim | LM18 COB 18W | N No Driver A DALI | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Example: ADLT41-LM18E230SWT
