ADLT51/ADLT61 5/6"

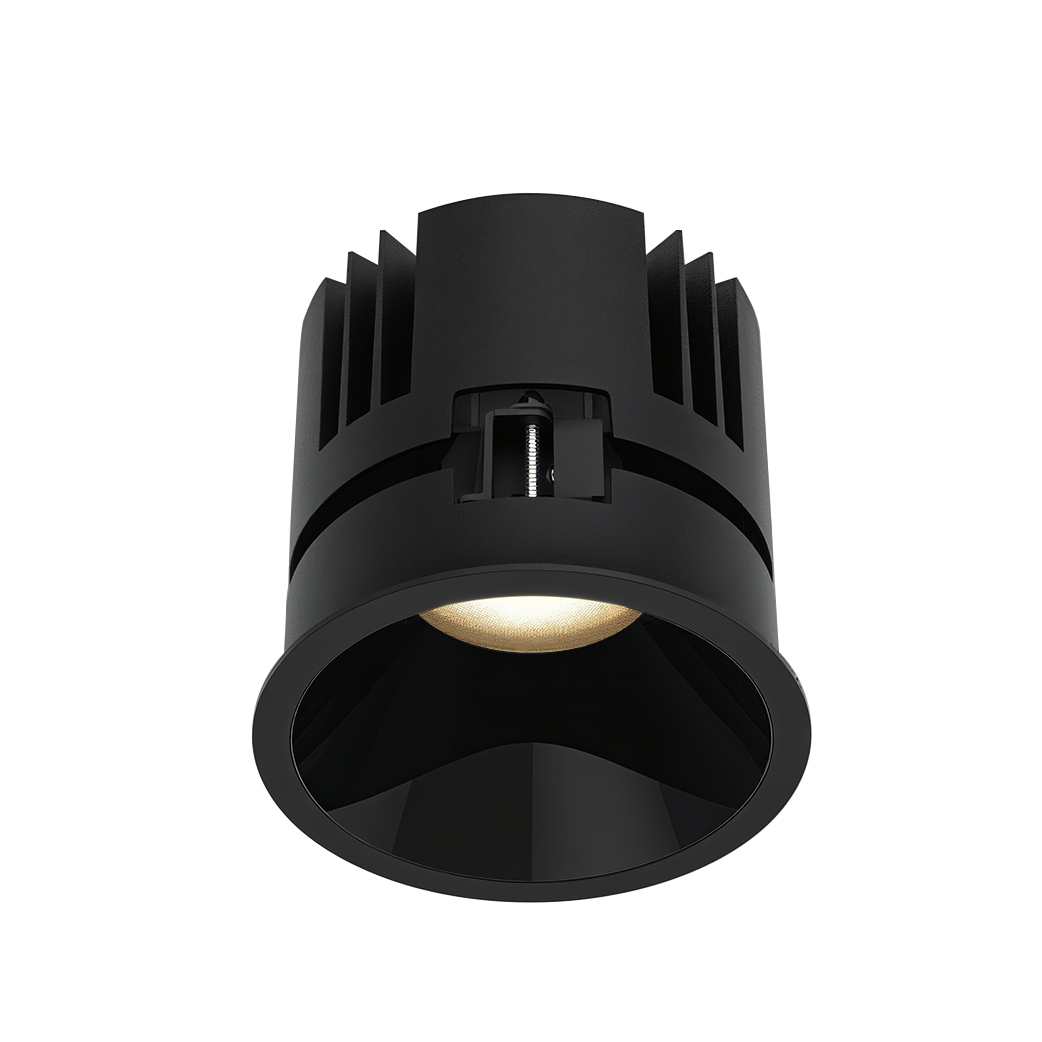

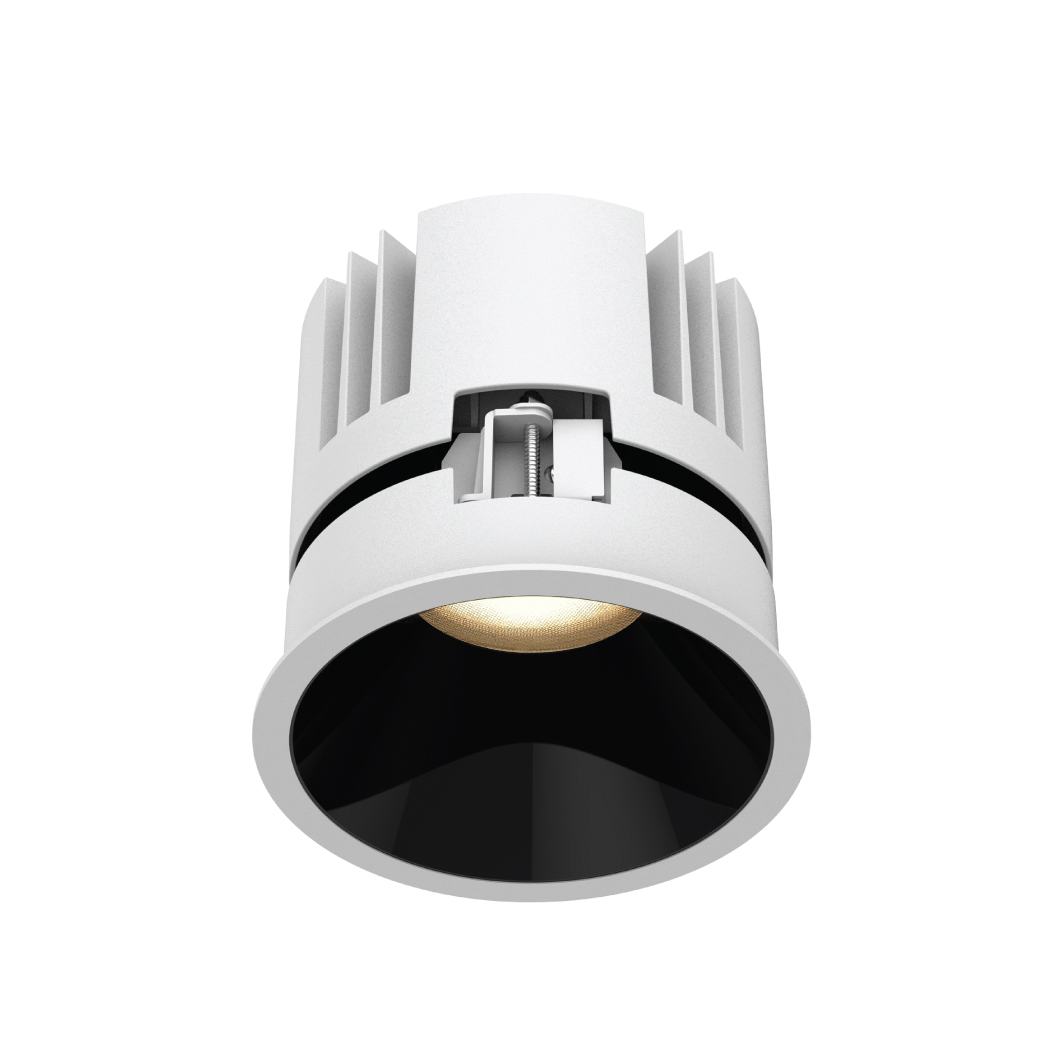

Round Narrow-Trim Recessed Downlight, featuring a streamlined design, this fixture combines a precision lens with a black reflector to deliver exceptional luminous efficacy while achieving superior glare control. The reflector and optical accessories can be easily removed and replaced, offering excellent on-site flexibility. Ideal for hotels and commercial interiors.
Actual lighting demonstration shows a clean and uniform beam with no stray light.
The series offers four optical configurations — 15°, 24°, 36°, and 55° — to meet diverse lighting requirements.
Hubei Dream Plaza
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 1 Round Trim | LM18 COB 18W LM25 COB 25W LM32 COB 32W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 5 5” | 1 Round Trim | LM32 COB 32W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 1 Round Trim | LM32 COB 32W LM43 COB 43W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADLT Downlight T series | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Example：ADLT61-LM43E230SWT
