ADDT31/ADDT41 3/4"

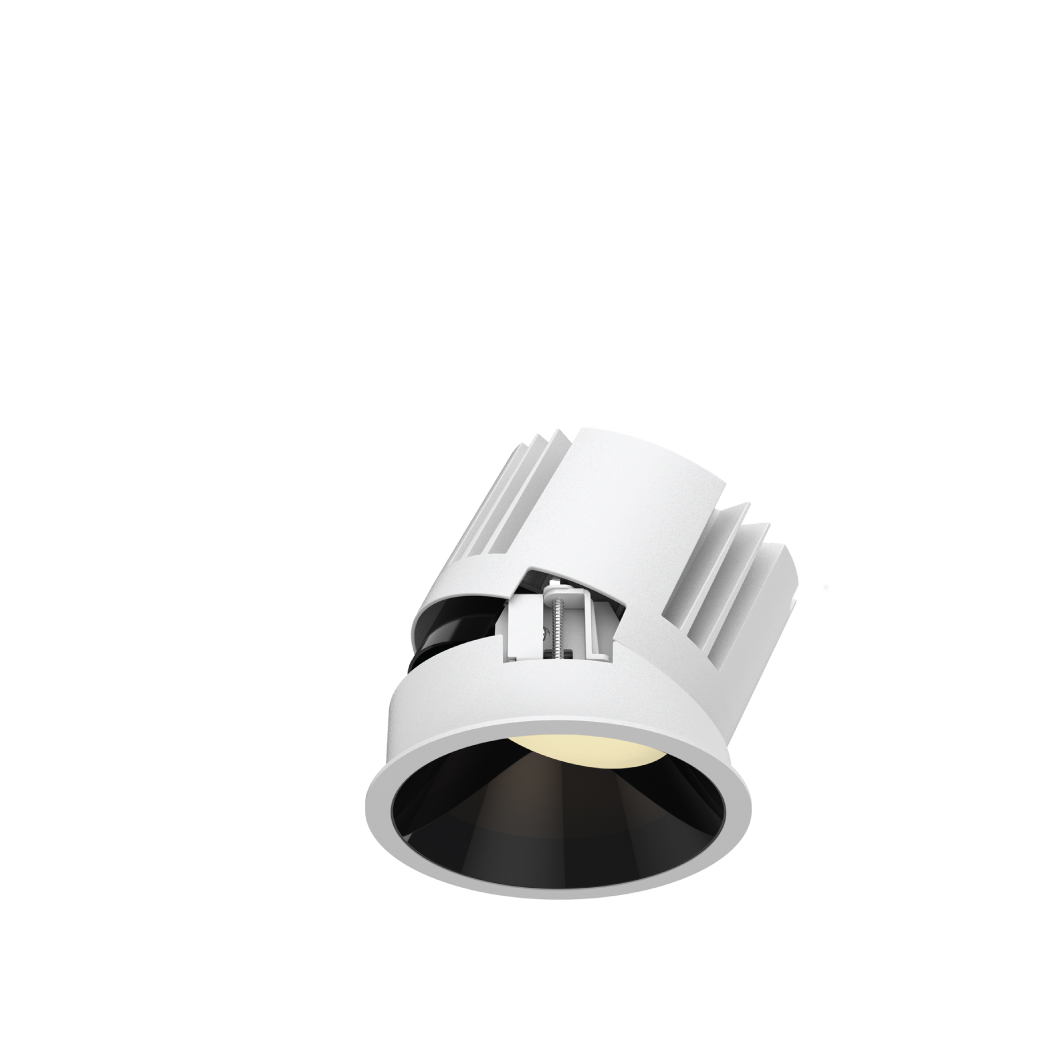

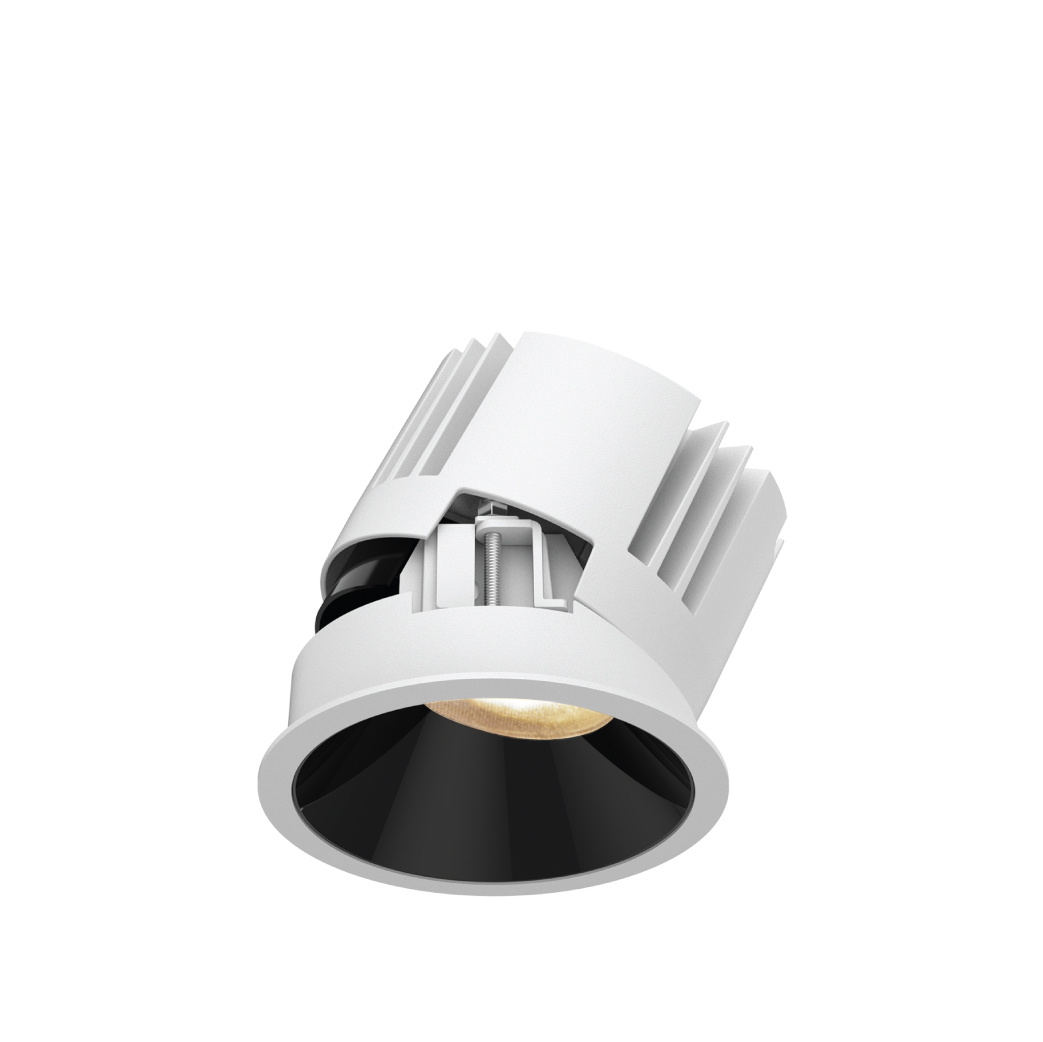

Round Narrow-Trim Recessed Downlight, featuring a streamlined design, this fixture combines a precision lens with a black reflector to deliver exceptional luminous efficacy while achieving superior glare control. The reflector and optical accessories can be easily removed and replaced, offering excellent on-site flexibility. Ideal for hotels and commercial interiors.
Actual lighting demonstration shows a clean and uniform beam with no stray light.
The series offers four optical configurations — 15°, 24°, 36°, and 55° — to meet diverse lighting requirements.
Hubei Dream Plaza
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
ADDT | 4 4” | 1 Round Trim | LM18 COB 18W | N No Driver A DALI | N 12° 1 18° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black |
Example：ADDT41-LM18E230SWT
