VOLTA II

ADLT55/ADLT65 5/6"

Downlight Square 5/6

ADLT55/ADLT65 5/6"

VOLTA II series LED square narrow recessed downlight, streamlined appearance, with precise lens and black mirror reflector design. It guarantees light output while still achieving the ultimate anti-glare effect, and the light source cavity is sealed to minimize the impact of humid environment on its performance. Free to remove and replace the reflector or optical accessories, greatly improving the convenience of the site. Mainly suitable for hotel and commercial indoor places.

Features

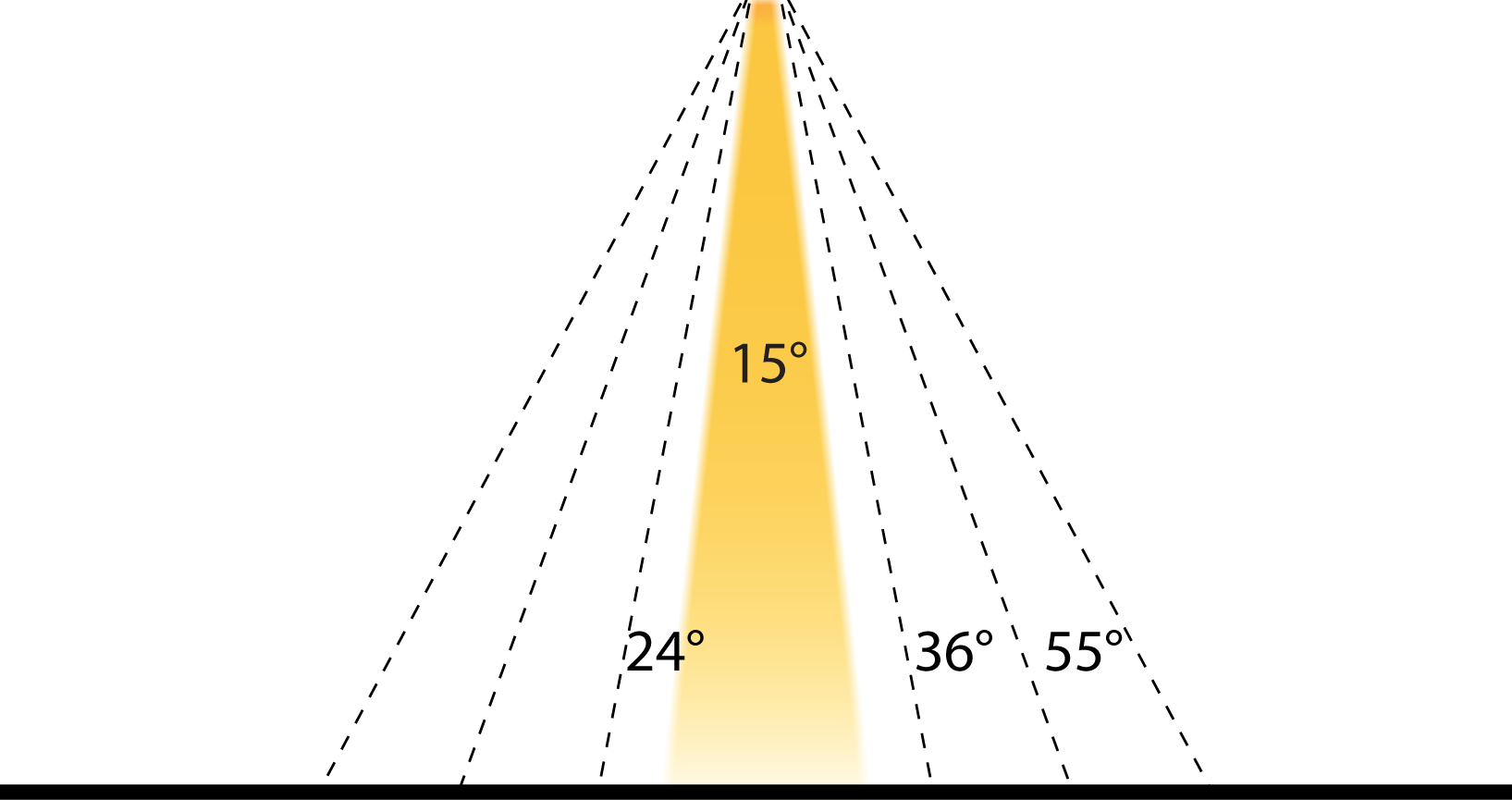

Multiple Beam Angles Available

The series offers four optical configurations — 15°, 24°, 36°, and 55° — to meet diverse lighting requirements.

Clean, Soft Beam (Right: VOLTA)

Actual lighting demonstration shows a clean and uniform beam with no stray light.

Hubei Dream Plaza

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

5 5”

5 Square Trim

LM18  COB 18W

LM25  COB 25W

LM32  COB 32W


E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

5 5”

5 Square Trim

LM32  COB 32W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

6 6”

5 Square Trim

LM32  COB 32W

LM43  COB 43W

E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

ADLT

Downlight T series

6 6”

5 Square Trim

LM43  COB 43W

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT  White

BK   Black

Example: ADLT65-LM43E230SWT


Documents
