ADLP21/ADLP31

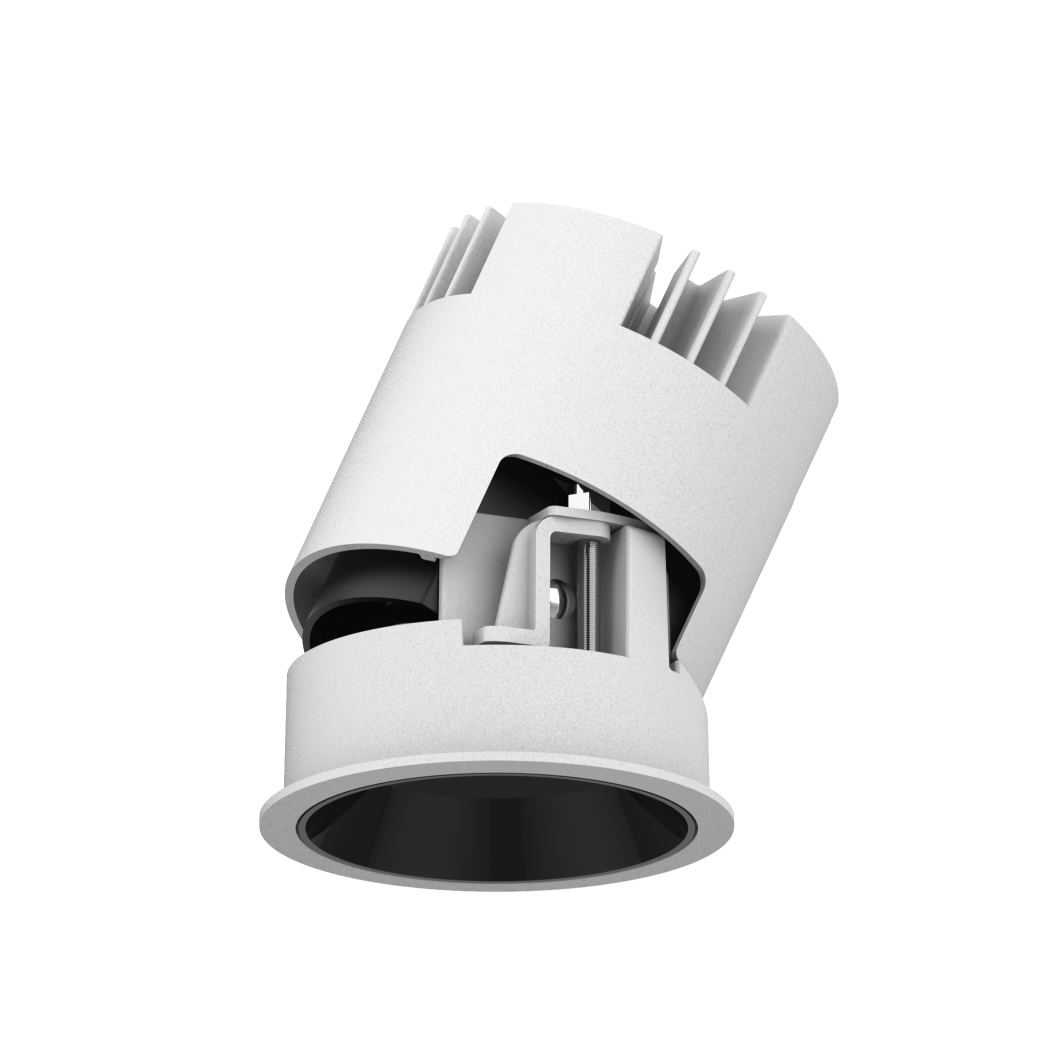

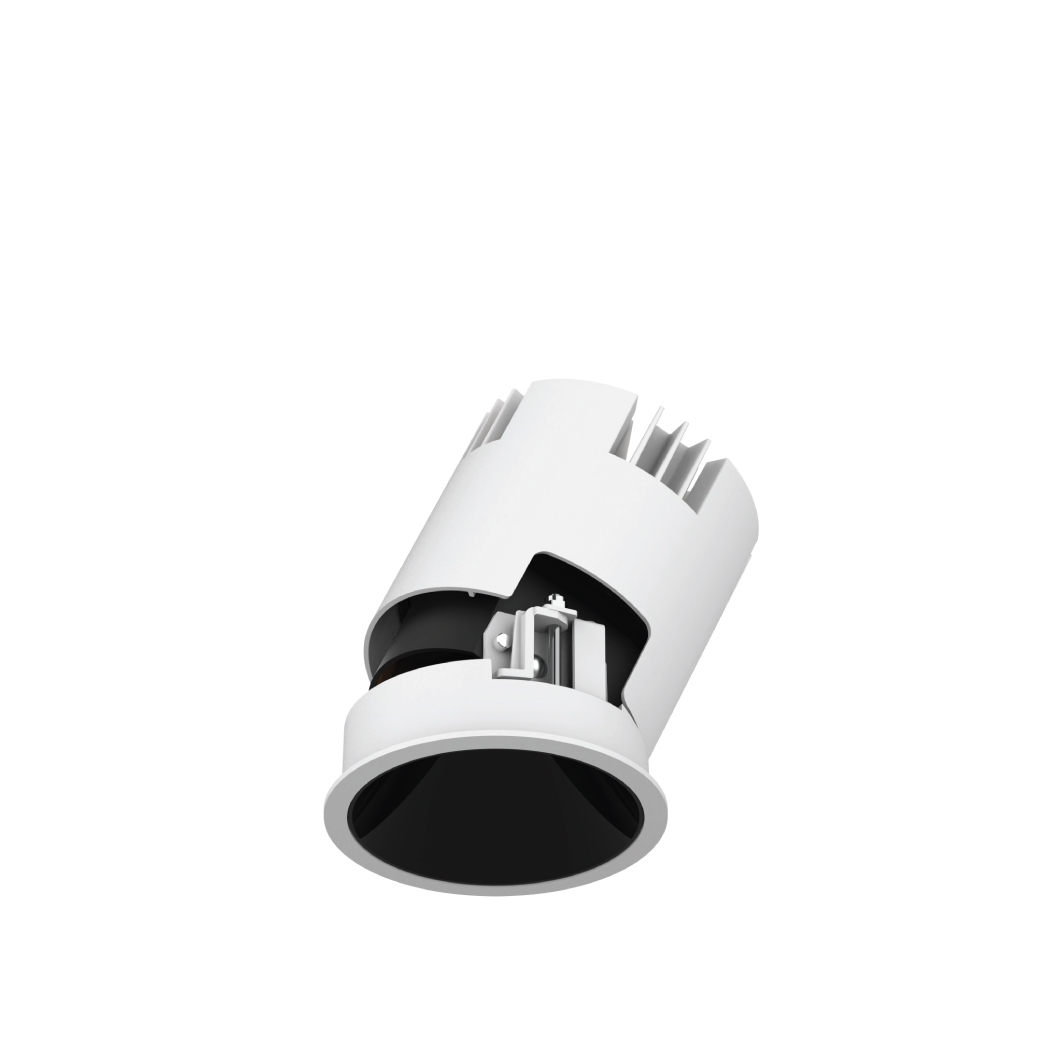

The VOLTA II Series LED round narrow-trim recessed wide-angle downlight features a sleek, streamlined appearance and a precision-engineered lens and reflector design that delivers exceptionally high luminous efficiency with outstanding glare control. Its sealed light engine minimizes the impact of humidity on performance, while the reflector can be easily removed and replaced, greatly enhancing on-site flexibility and maintenance convenience. Ideally suited for hotels and commercial interior spaces, the VOLTA II Series provides a reliable and elegant lighting solution for modern architectural environments.

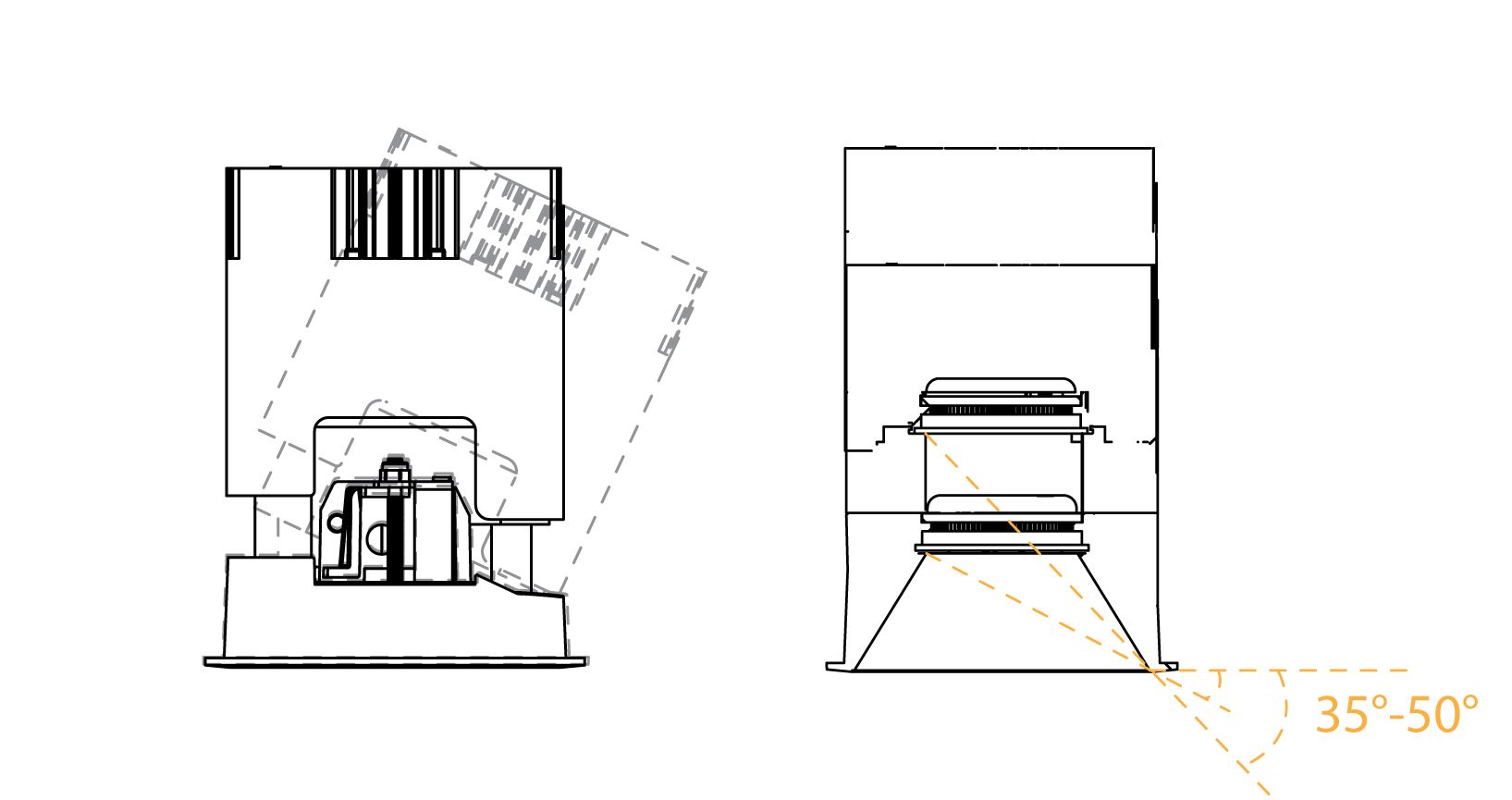

Featuring an integrated design that combines downlight and tilt adjustment, the beam cut-off angle can be flexibly adjusted within a 35° to 50° range, providing various levels of visual comfort for different lighting needs.

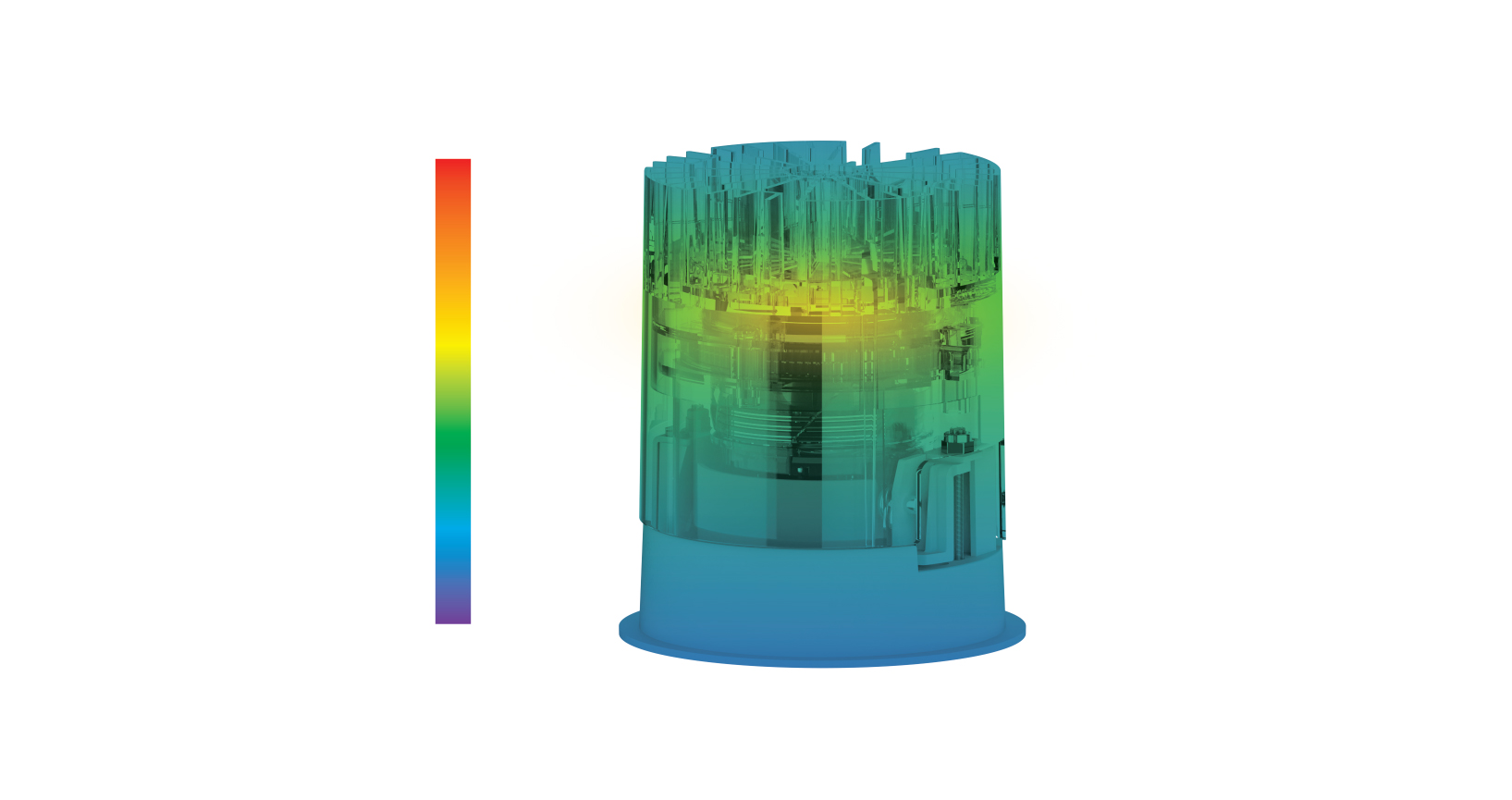

The advanced optical and structural design ensures superior thermal performance, allowing the fixture to operate at higher power and temperature levels while maintaining a long service life.

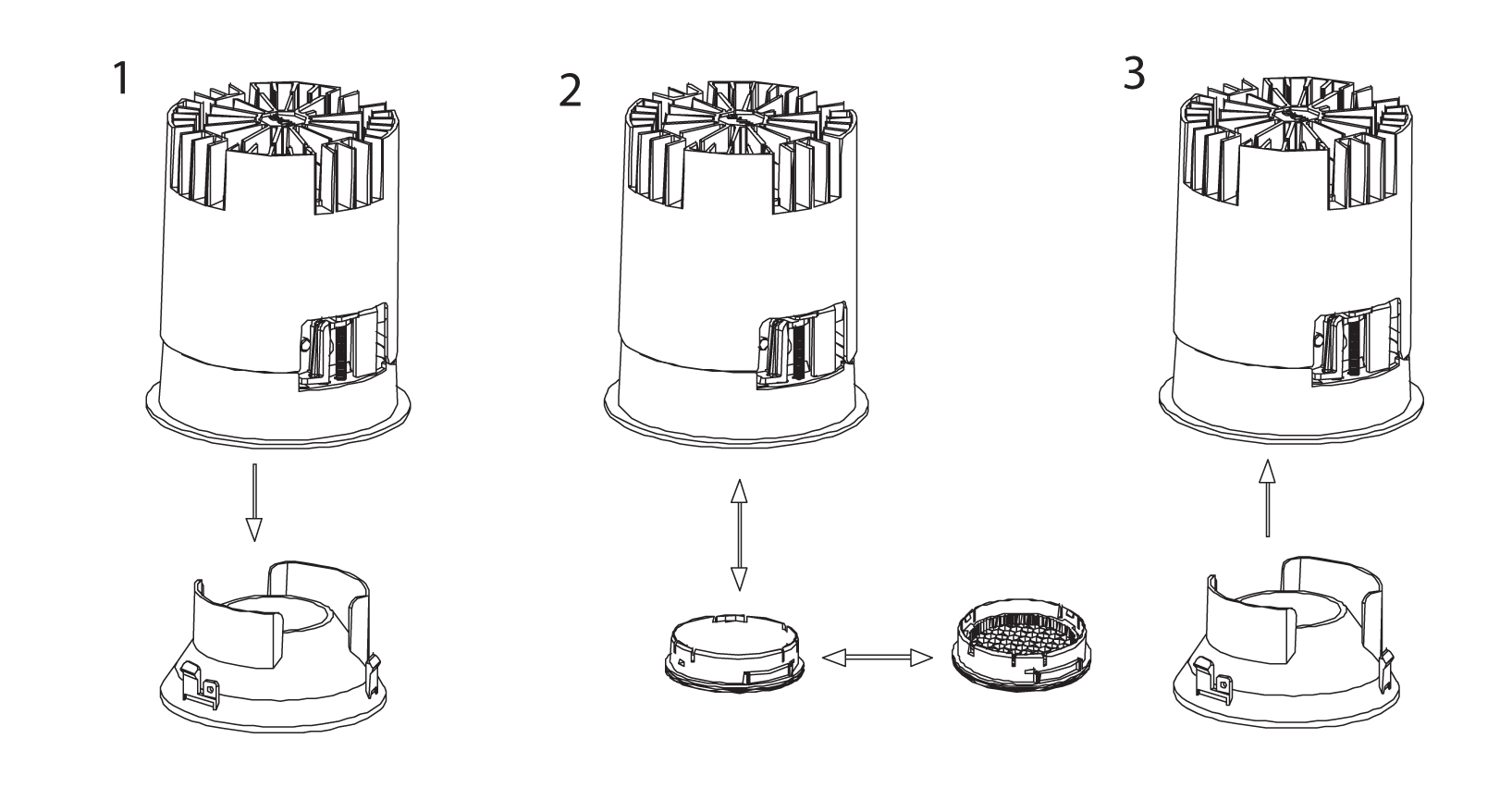

Interchangeable optical components such as beam-shaping lenses and honeycomb louvers can be easily installed or replaced to achieve customized light distribution and improved glare control.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
ADLP Downlight P series | 2 2” | 1 Round Trim | LM13 COB 13W LM10 COB 10W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
ADLP Downlight P series | 2 2” | 1 Round Trim | LM13 COB 13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
ADLP Downlight P series | 3 3” | 1 Round Trim | LM COB 20W LM15 COB 15W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | |
ADLP Downlight P series | 3 3” | 1 Round Trim | LM20 COB 20W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular
| WT White BK Black | |
Sample: ADLP21-LM13E230SWT
