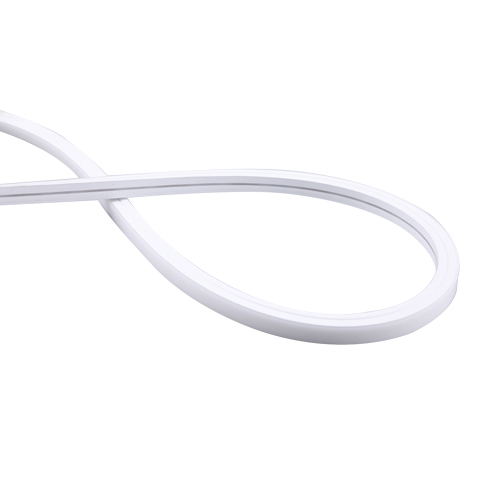

16×16 Top View Neon Strip Series, single color with high luminous efficacy of 100 lm/W.Manufactured with a three-in-one co-extrusion process to ensure continuous and uniform light output with no visible light dots. Features an integrated end-cap injection molding design, supporting seamless connections with no dark areas. Available in IP65 and IP67 protection ratings, suitable for both indoor and outdoor applications, such as architectural outlining, contour lighting, and decorative shapes.

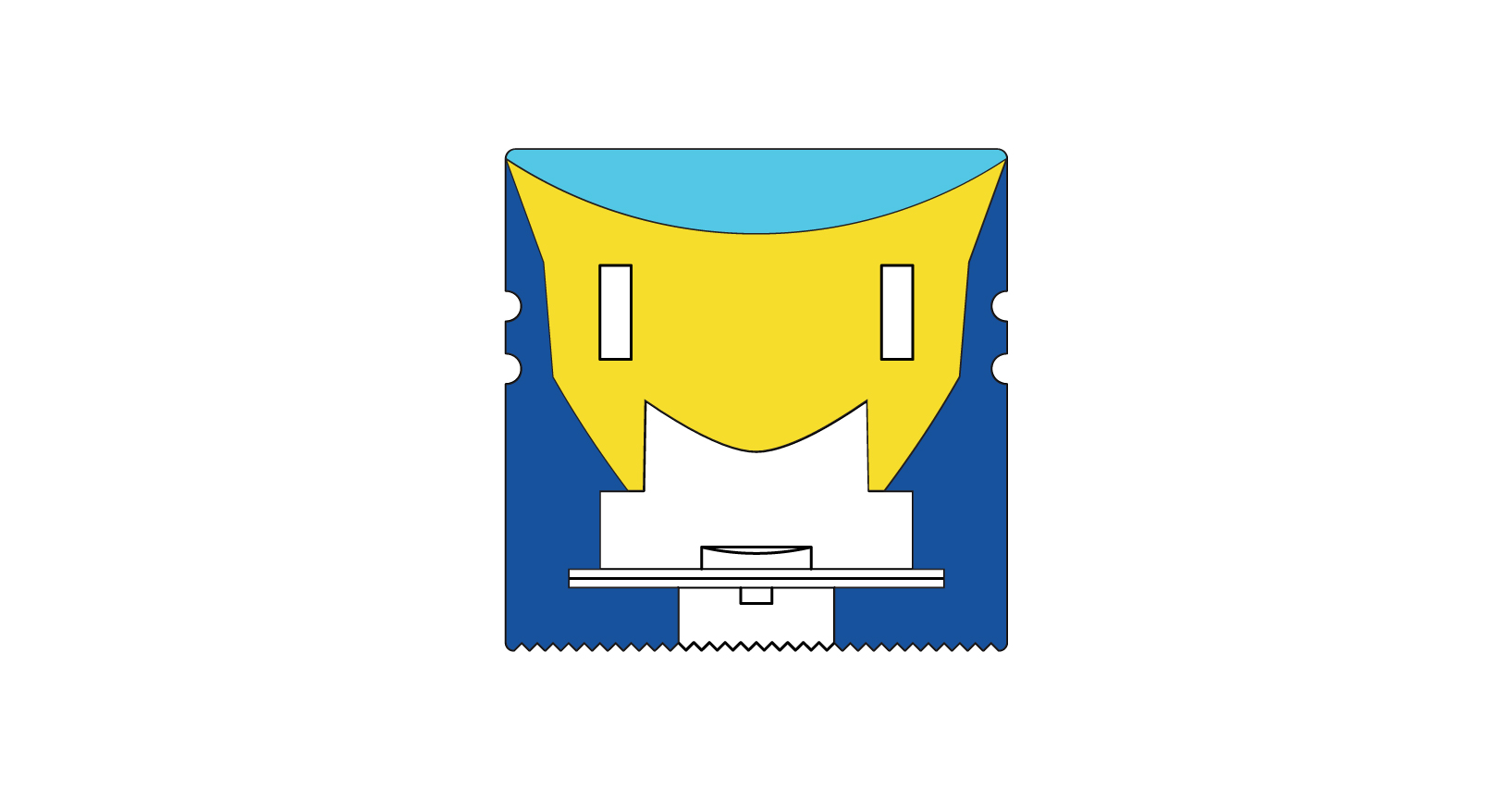

The advanced three-in-one co-extrusion technology delivers outstanding sealing performance, enabling this high efficiency neon strip to achieve IP65/IP67 waterproof ratings. This makes it an ideal solution for a wide range of outdoor environments, perfectly suited for innovative and artistic lighting designs.
Model | LED | Length | Size | Dimming | CCT | Power Feed Type | IP | Finish |
AFLSH H Series Flexible Top View Neon Strip Series
| 14 14W/m 18 18W/m
| 10 1m 20 2m 30 3m 40 4m 50 5m | K 16*16mm High Efficiency | E ON-OFF( Entire 1 phase control ) M DMX512(1 meter 8 segments) | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K F2 RGBW (2700K) F3 RGBW (3000K) F4 RGBW (4000K) F5 RGBW (5000K) | S Side cable B Side cable F Side cable | 5 IP65 7 IP67 | WT White |
Sample：AFLSH-1410KE30S5WT
Note: Lengths are available in 0.1 meter increments, model number example: FLSV-0615A-E30S5WT ("15" stands for 1.5 meters).
