ATL72H
FALCON II ROUND series LED track lights are suitable for W three-circuit tracks. The lamp structure is slim and three-dimensional, using WAC's leading SUBROSA hidden light technology, and has a 35° anti-glare angle for ultimate anti-glare effect. The lamp has a built-in high-quality LED constant current electrical appliance, and can choose advanced wireless dimming control functions. At the same time, it provides a variety of different light distribution forms and can be equipped with various optical accessories to meet different application environment requirements. It is widely used in museums, art galleries, science museums and other places.
Featuring advanced optical innovation, protected by WAC’s invention patent (Patent No. ZL 2017 1 0792586.3), the SUBROSA Hidden Light System delivers ultimate glare control and exceptional visual comfort.This patented optical technology achieves dual breakthroughs in glare reduction and luminous efficacy.
The Falcon II Series adopts WAC’s latest patented optical technology, delivering significant improvements in both glare control and lighting performance, setting a new benchmark in professional lighting design.

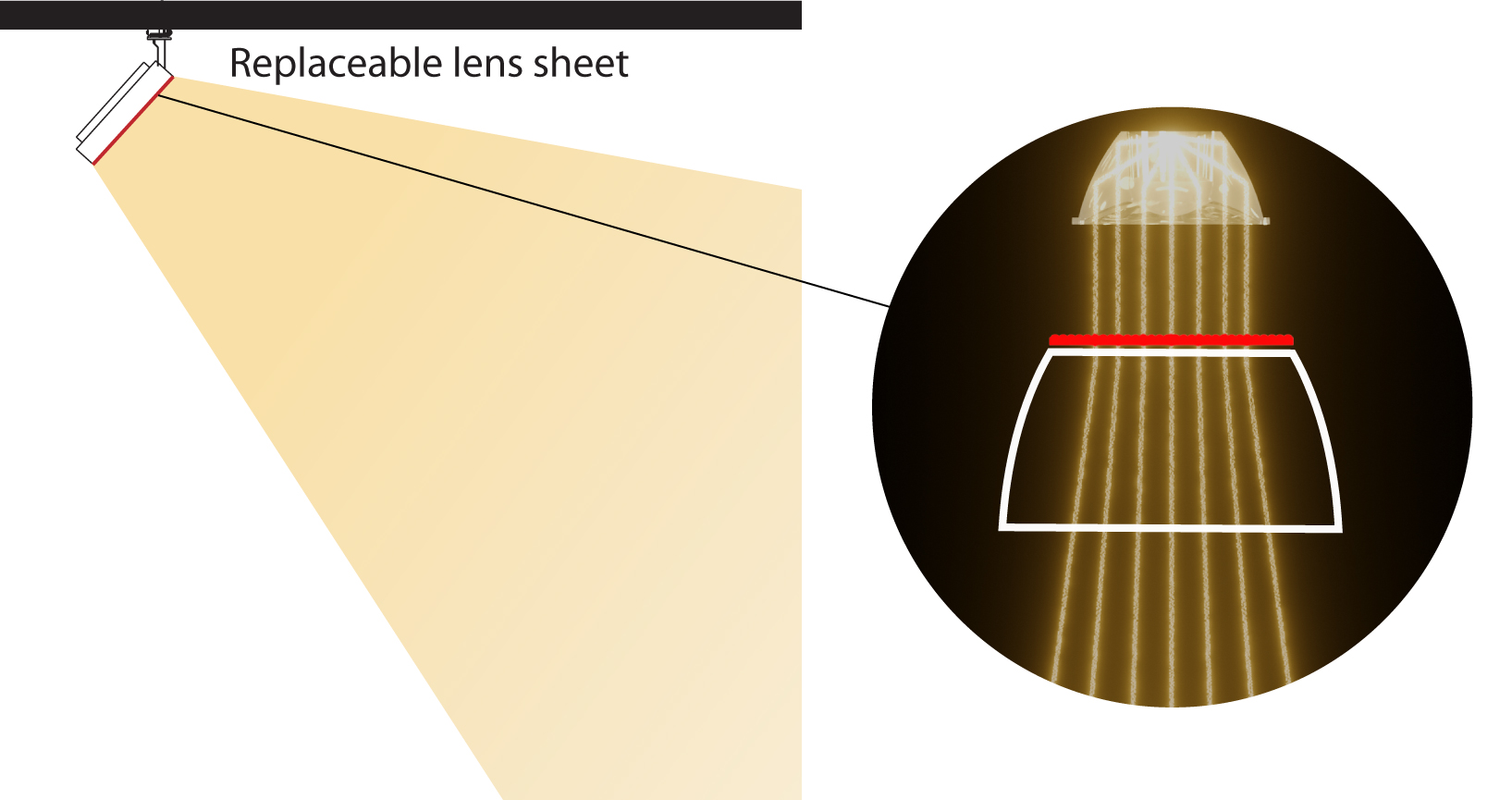

A wide selection of optical accessories allows for flexible adjustment of lighting effects. The optional beam-angle lens with a compound micro-lens optical design enables tool-free, on-site replacement, providing quick and convenient beam control for various applications.
Fully compatible with the WAC-MESH Intelligent Control System, the Falcon II Series supports wireless control and dimming, seamlessly integrating into the WAC Smart Control Platform for advanced, intelligent lighting management.
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL72H FALCON II ROUND | LD12 | O On-boarding D 0-10V+On-boarding B Wireless+On-boarding A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL72H FALCON II ROUND | LD18 LD27 | O On-boarding D 0-10V+On-boarding B Wireless+On-boarding A DALI | S 6° N 10° 1 15° 2 24° 3 36° 5 50° G 25*55° E 15*55° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Example: ATL72HLD18-O2930W
Note: When the light-emitting surface of the fixture is parallel to the illuminated surface, the 25×55° and 15×55° beam angles indicate a horizontally elongated light pattern.
