ASLP3/ASLP4 LEDme Air Showcase Light
With an exquisite exterior design, the lamp body is made of tensile aluminum profiles. With multiple length and size options, it can adjust the height, size and lighting direction of the luminary according to the scale of the workbench and cabinet. With built-in LED module and external constant current or constant voltage driver, it supports various dimming methods and free splicing on site.

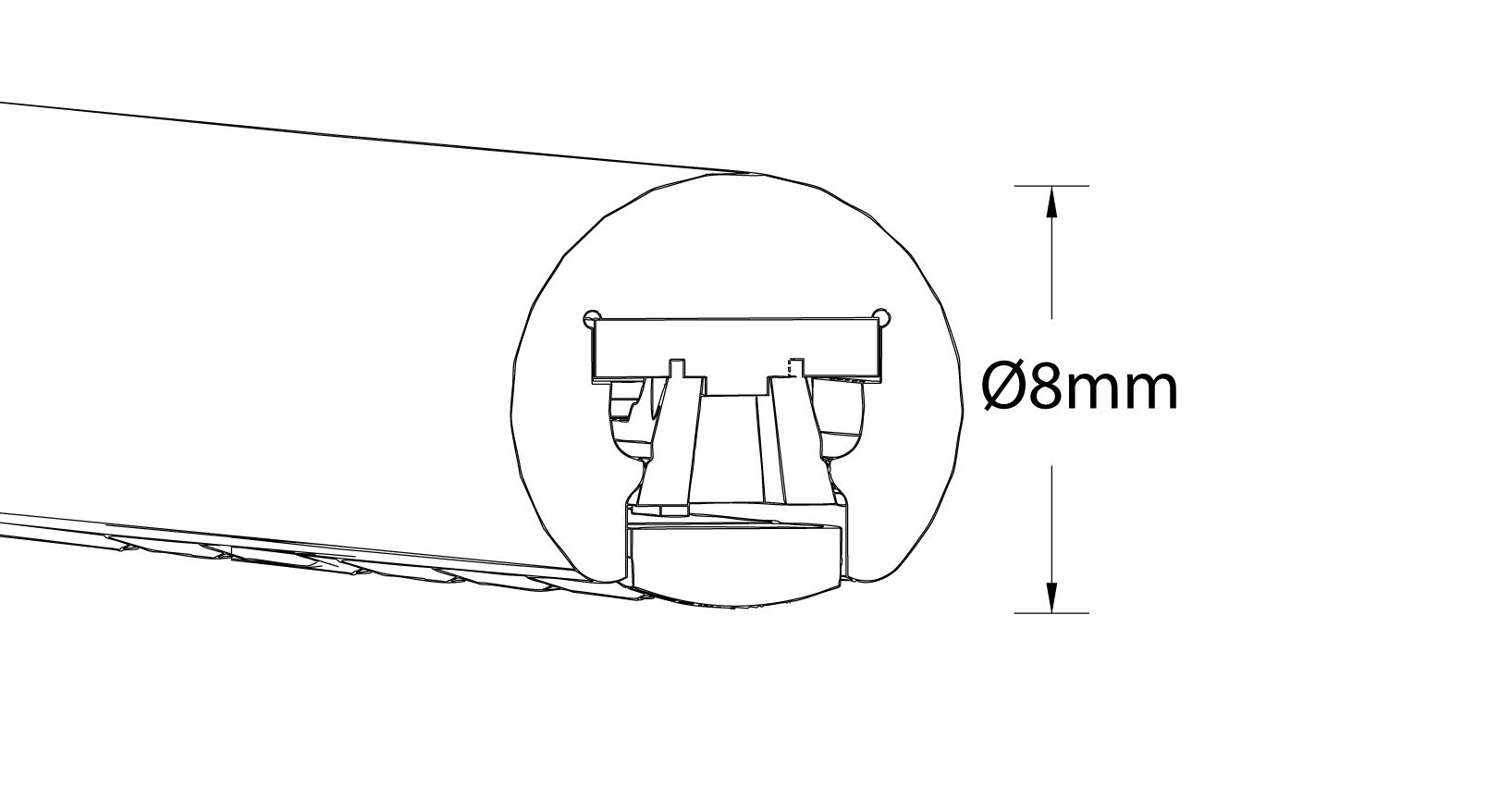

The fixture’s slender body achieves a 50% reduction in thickness, with a diameter of only 8mm, setting a new benchmark for slim linear lighting design in the industry.

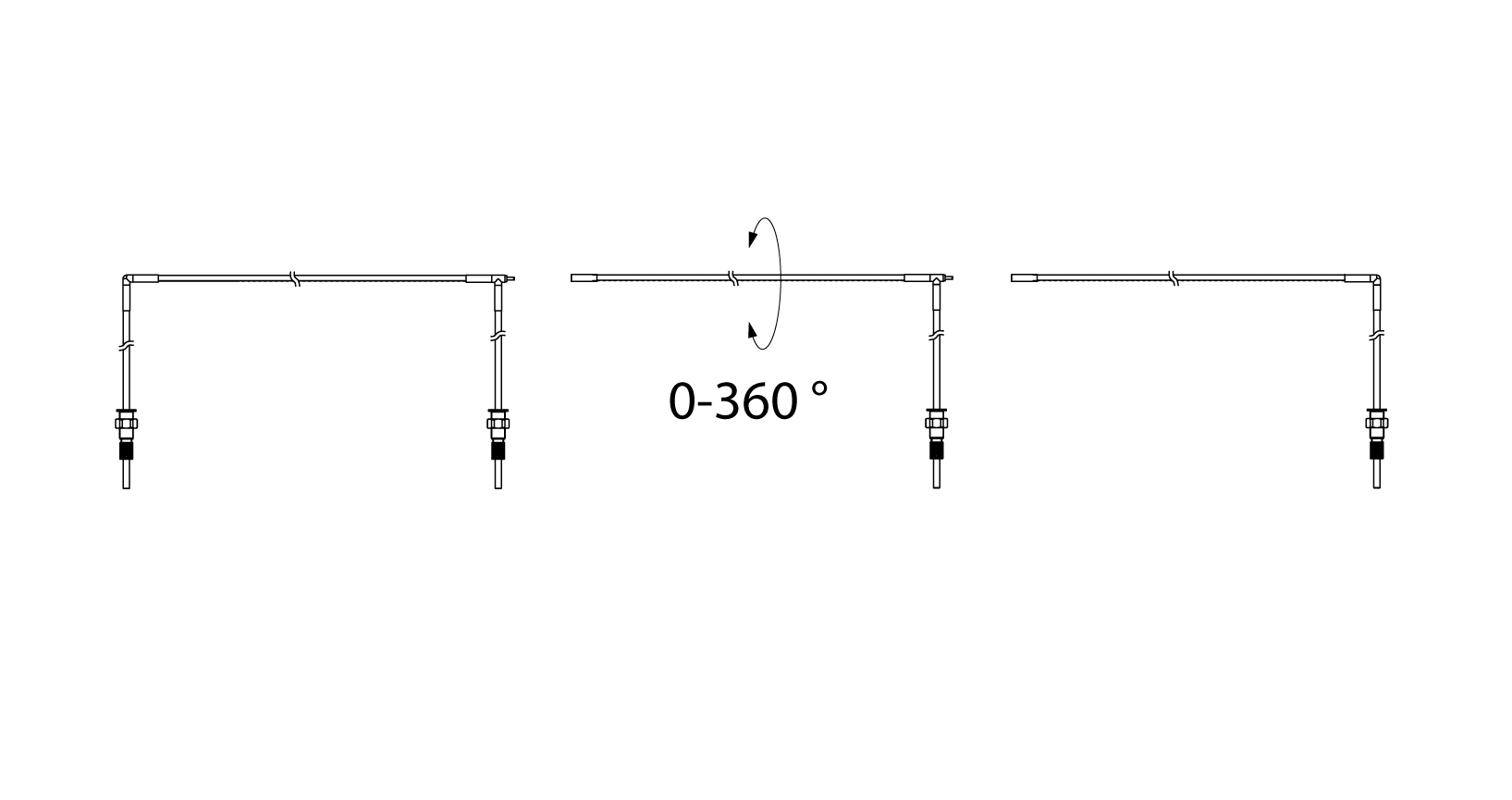

The LEDme Air Series features an aerospace-grade aluminum alloy frame combined with WAC’s patented connection technology, allowing seamless extension up to 1.6 meters to match the length of tables or cabinets. The luminaire also supports 0–360° rotation, enabling precise adjustment of the lighting position for any application.
Available in single color temperature or tunable white configurations, supporting CCT adjustment from 2700K to 6000K to suit various lighting moods and environments.
Shanghai Minhang Museum
Model | LED | Length（L） | Drive | Beam | CRI | CCT | Finish |
ASLP3 Universal luminaire ASLP4 Connected luminaire | 10 10W/m 05 5W/m | 16 1.59m 14 1.39m 12 1.19m 10 0.99m 05 0.49m | T Constant Voltage | W Wash | 9 90 A 95 | 30 3000K 35 3500K 40 4000K CC 2700K-6000K | BK Black |
Example: ASLP3-1010TW930BK
Note:

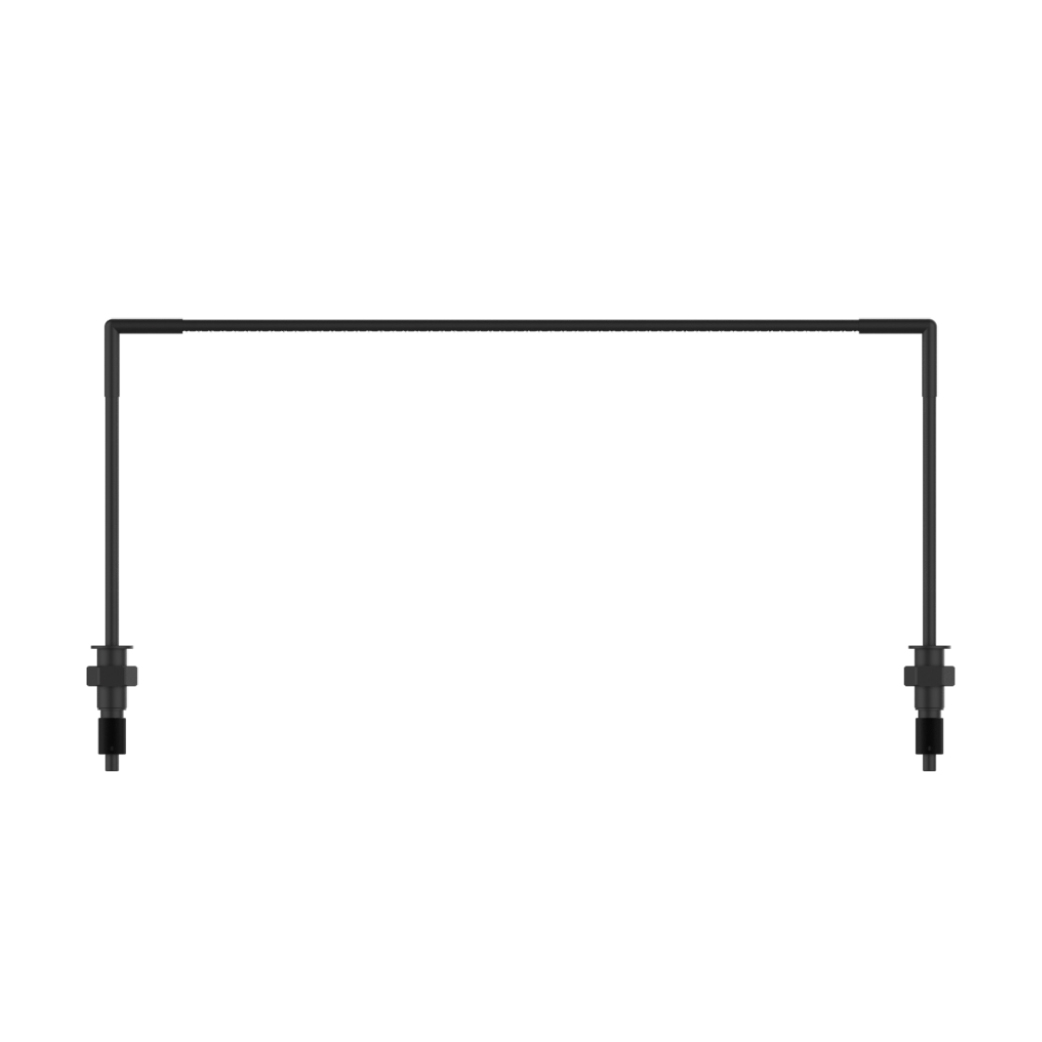

The ASLP3 model is equipped with double-end support rods (total length L1) and requires a Φ20mm mounting hole, with a hole spacing of L1 minus 9mm.The ASLP4 model features a single-end support rod design for modular connection (total length L2) and must be used in conjunction with the ASLP3.Both models are non-electrical components.The product lengths L1 / L2 can be customized as required, with a minimum unit length of approximately 0.1m and a maximum total length of 1.59m.For specific customization requests, please consult WAC.
