AOP2S

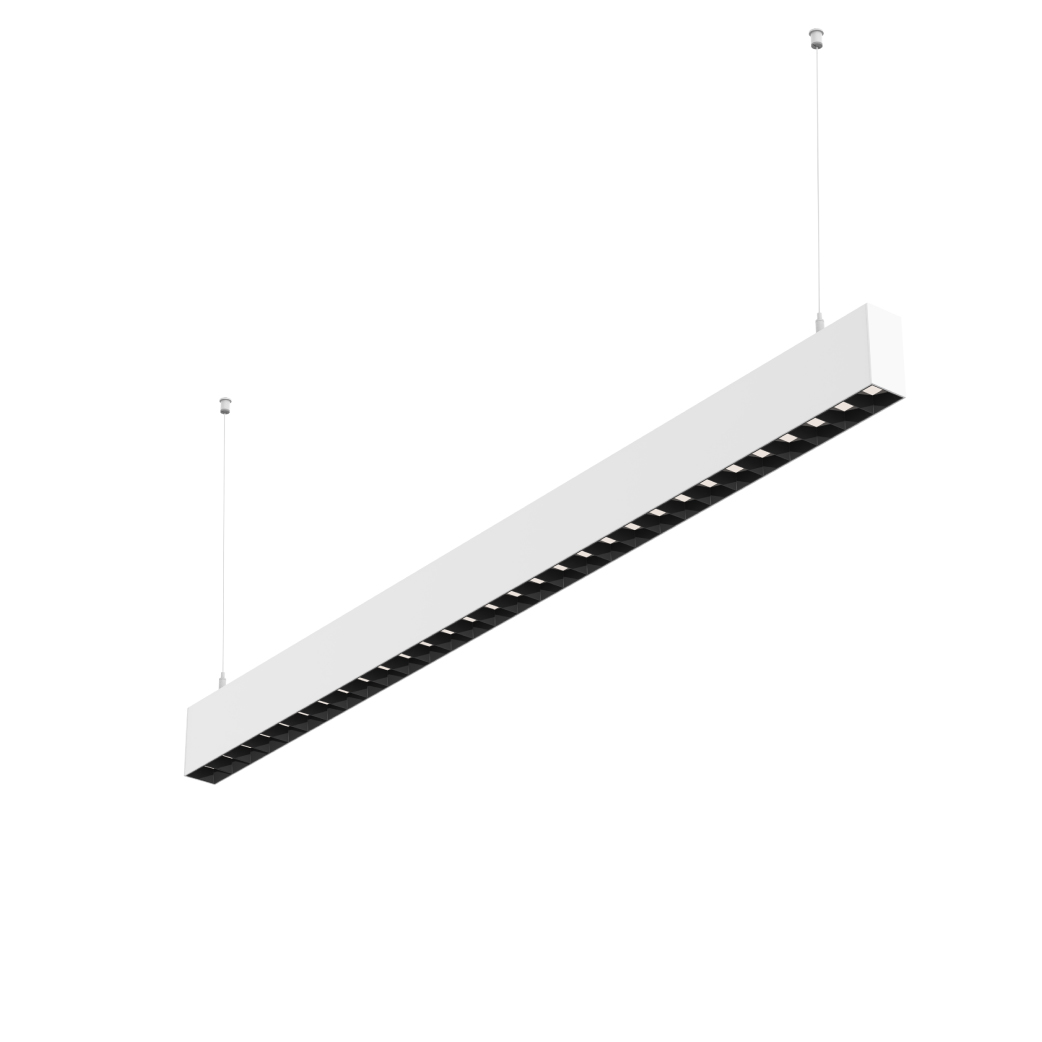

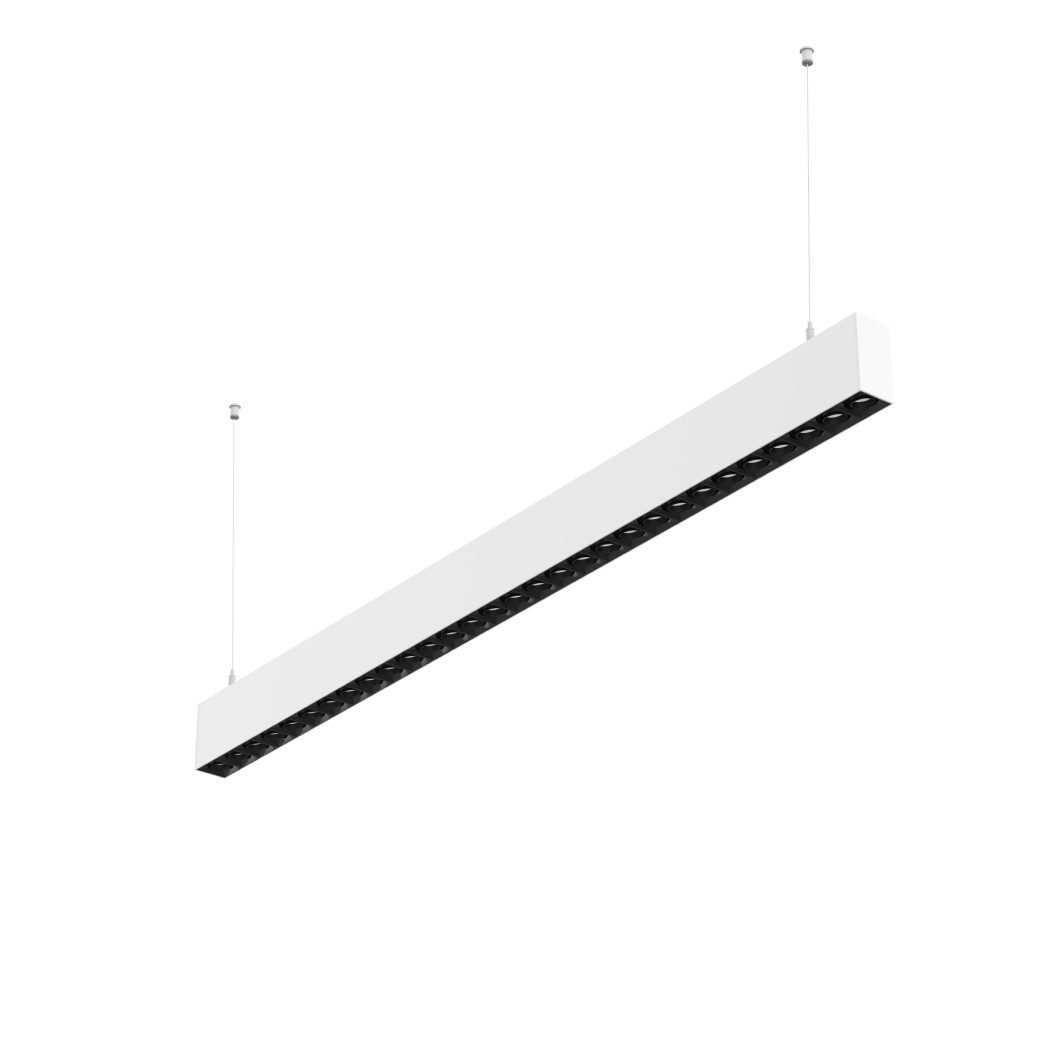

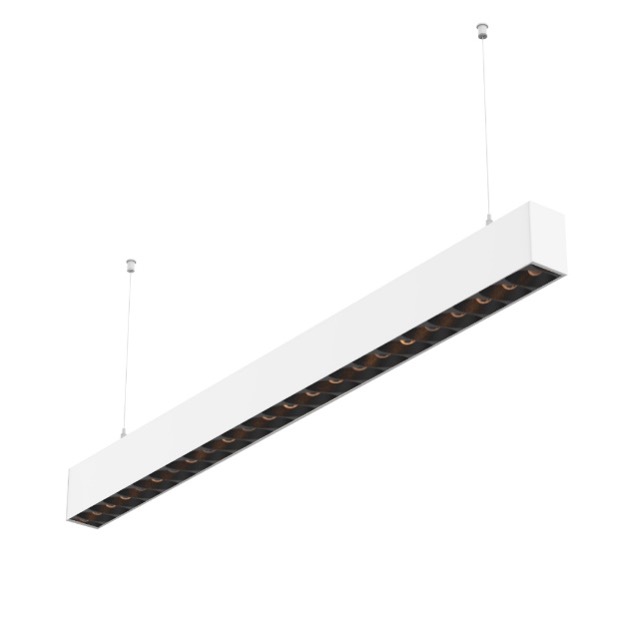

The LIGNE III suspended linear luminaire features a sleek aluminum profile housing with a clean and modern appearance. Utilizing high-efficiency LED light sources, it offers excellent heat dissipation, energy-saving performance, and superior anti-glare control. The fixture supports end-to-end connection and customizable lengths, providing flexible design options for different lighting layouts. Ideal for commercial and office lighting applications, the LIGNE III delivers both functional illumination and refined aesthetics.

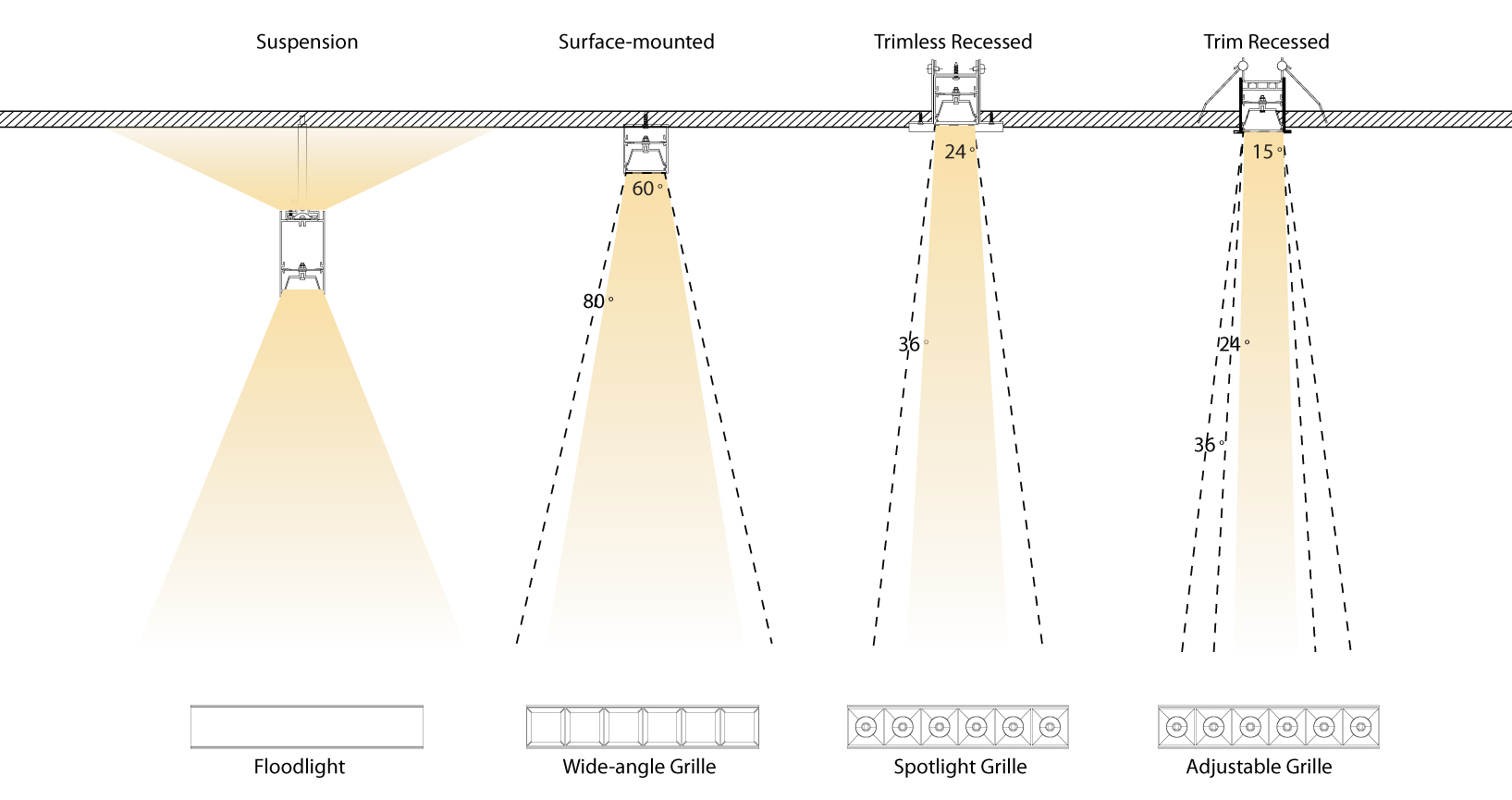

The series offers four installation options — suspended, surface-mounted, recessed with trim, and trimless recessed — providing flexible integration into various architectural environments. It also features four optical configurations, allowing precise lighting control to meet different design and application needs.
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
AOP2S | S Single Directional | 12 1200 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | P (Frosted cover) Y (Prismatic cover) | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
AOP2S | D Double Directional | 12 1200 | 40 down:30W, up:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | P (Frosted cover) Y (Prismatic cover) | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
AOP2S | S Single Directional | 12 1145 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
AOP2S | D Double Directional | 12 1145 | 40 down:30W, up:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
AOP2S | S Single Directional | 12 1205 | 30 30W | E On-Off D 0-10V Dimming A DALI | / | 6 60° 8 80° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up | Beam Down | CCT | Finish |
AOP2S | D Double Directional | 12 1205 | 40 down:30W, up:10W | E On-Off D 0-10V Dimming A DALI | F Frosted | 6 60° 8 80° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Model | Comment | Length（mm） | Power（W） | Driver | Beam Up |
