AES5
Designed with a unified aluminum housing, SLANA presents a minimalist and elegant profile, reflecting a modern aesthetic. Equipped with high-performance LED light sources and an efficient heat dissipation structure, it ensures stable, long-lasting illumination and excellent optical performance, providing users with a refined and comfortable lighting experience. The fixture supports seamless end-to-end connection, with customizable lengths, and offers multiple installation options, suspended, surface-mounted, or recessed flexibly adapting to various semi-outdoor applications such as canopies and corridors, delivering a professional and visually harmonious lighting solution.
With advanced optical technology, the Slana series delivers high luminous output through frosted or prismatic lenses.Additionally, a louver version is available, offering a variety of beam distributions, from spot to flood lighting — to suit diverse outdoor lighting needs.

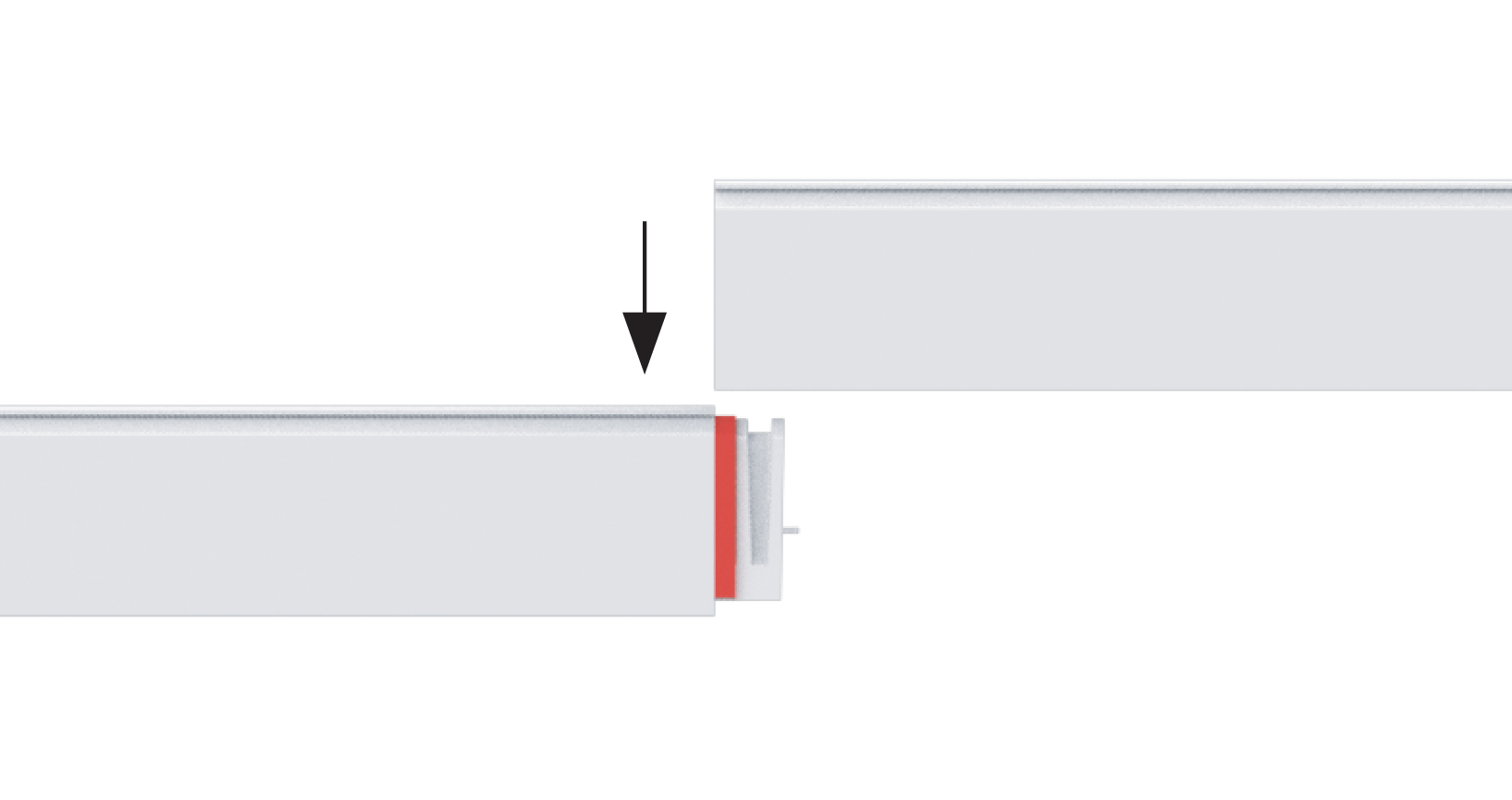

Designed with a unique structural system, the Slana series supports continuous on-site connection, achieving uniform, uninterrupted lighting effects across extended installations.

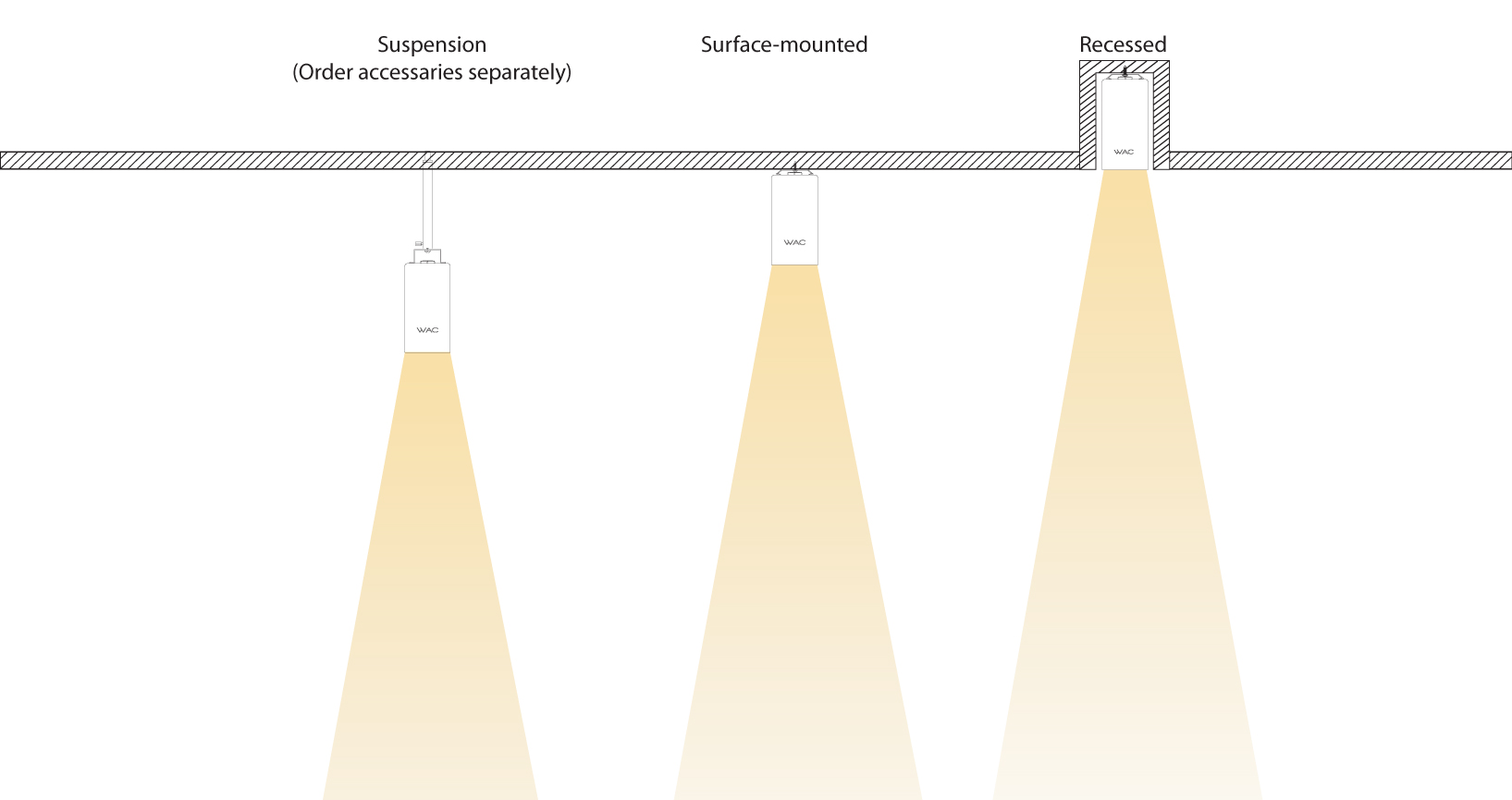

The luminaire offers three installation types: suspended, surface-mounted, and recessed — providing flexibility for different architectural and environmental conditions.
Model | Length（mm） | Comment | Power （W） | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
AES510 | 1000 | C Ceiling Mounted U U-Shape Bracket | 035 35(Max) | 288 | 3141 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | P (Frosted cover ) Y (Prismatic cover) | 27 2700K 30 3000K 40 4000K | WT White | |
Model | Length（mm） | Comment | Power （W） | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
AES520 | 2000 | C Ceiling Mounted U U-Shape Bracket | 070 70(Max) | 576 | 5652 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | P (Frosted cover ) Y (Prismatic cover) | 27 2700K 30 3000K 40 4000K | WT White | |
Model | Length（mm） | Comment | Power （W） | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish | |
AES530 | 3000 | C Ceiling Mounted U U-Shape Bracket | 105 105(Max) | 864 | 8478 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | P (Frosted cover ) Y (Prismatic cover) | 27 2700K 30 3000K 40 4000K | WT White | |
Example: AES510C-035ELP27BK
