ASL18S

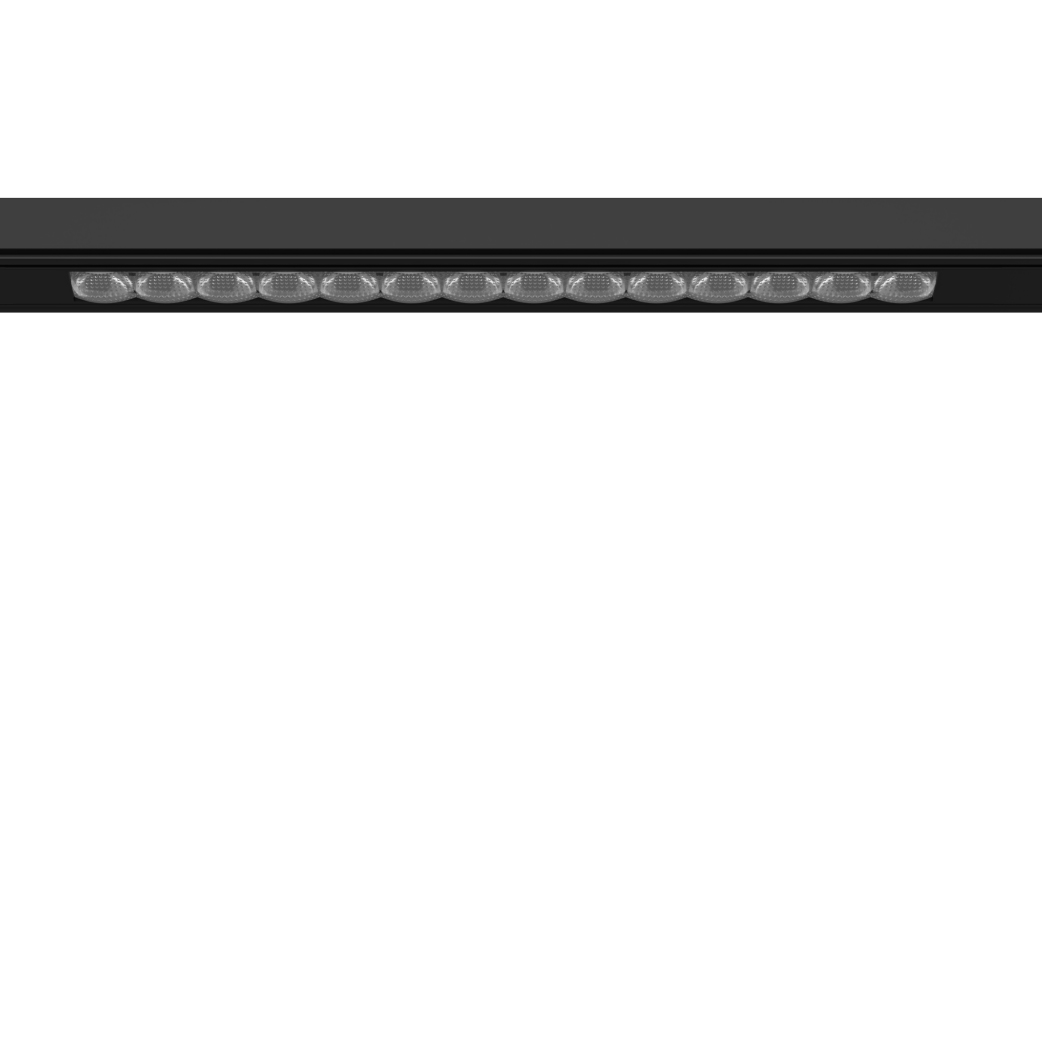

An ultra-slim 24V low-voltage linear luminaire designed for the WAC ZIGGY two-wire track system. Compact and discreet, it features WAC’s advanced optical technology to deliver a uniform 40° beam. The housing can be fully recessed into the ultra-narrow art track, meeting the needs of different environments and widely used in museum and gallery display-case lighting.
Enhanced physical safety: the recessed side-channel design enables easy installation and helps prevent short circuits caused by metal foreign objects or a screwdriver entering the track.

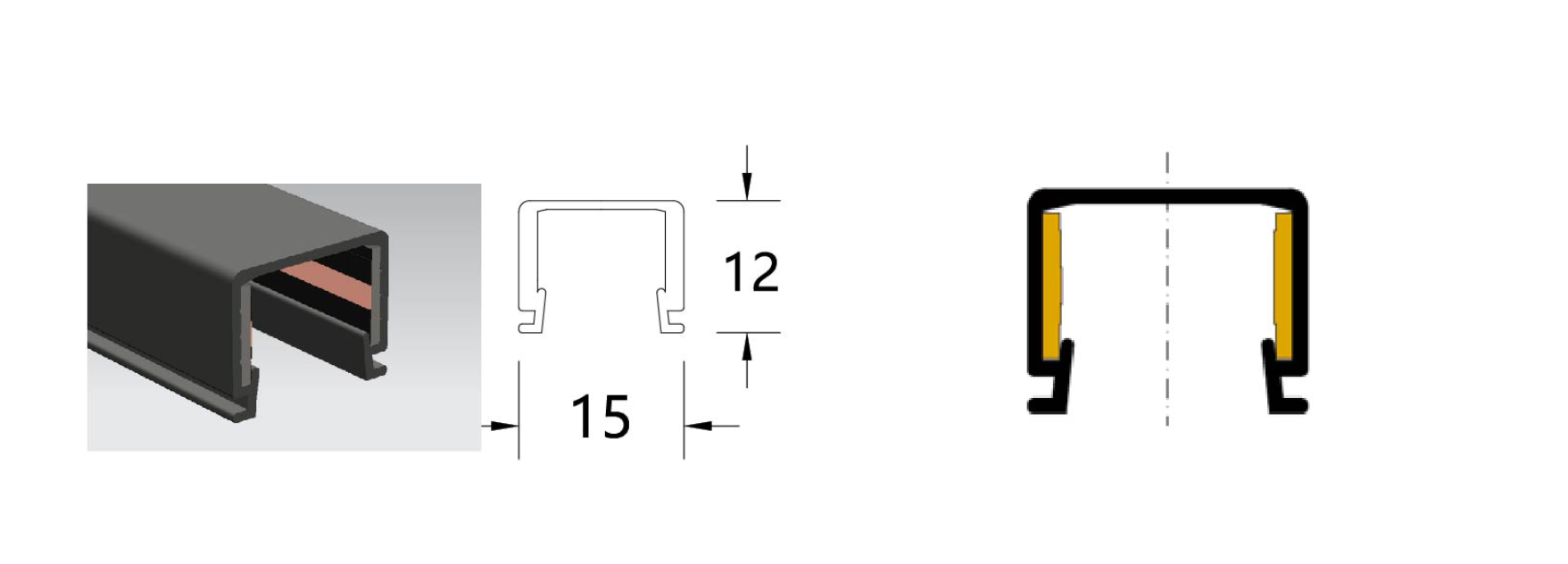

ZIGGY
Baoji Bronze Ware Museum
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ASL18S ZIGGY | LD03 LED 3W LD07 LED 7W | E Sys. Dimming① | 4 40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: ASL18SLD03-E4930BK
Note: Supports system dimming; requires an external dimmable constant-voltage driver (the dimming method depends on the driver).
