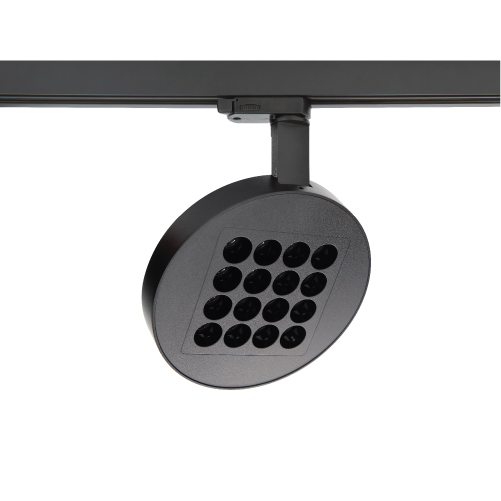

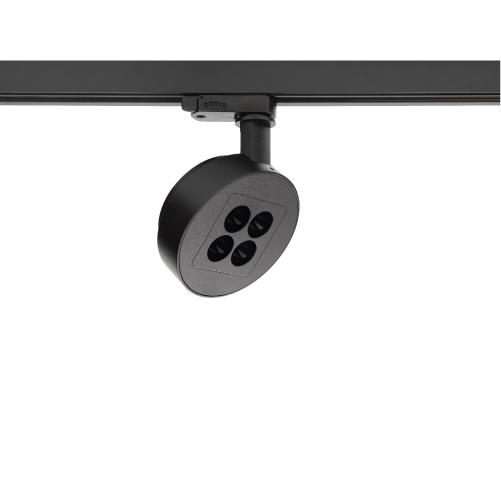

ATL71SA/TL72S/ATL73S

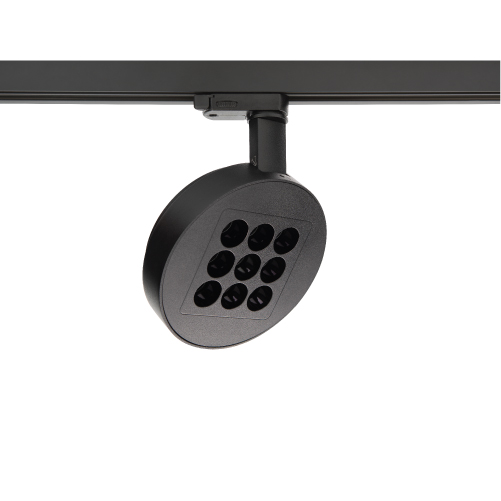

A series of integrated LED luminaires with powerful capabilities, FALCON is highlighted in the WAC Museum Collection of upscale lighting. Through careful designand patented SUBROSA® Optical system, the luminaires offer a 30° anti-glare angle, slim profile and multiple control options. Using a unique W-Module optical system and advanced LED technology, FALCON provides a variety of light distributions to the most challenging lighting applications.
WAC LIGHTING has the industry's first SUBROSA technology. Accurately calculating and controlling light, deep anti-glare, greatly improving the light experience.
Ultra-narrow beam angle of 4°, up to 60°. Elliptical light distribution and wall-washing light distribution, ""tailored"" for different sizes of exhibits. Excellent stray light control, light and shadow flow, don't take over the host's place, make the details to the extreme.
Model | LED | Dimming | Beam | CRI | CCT | Finish |

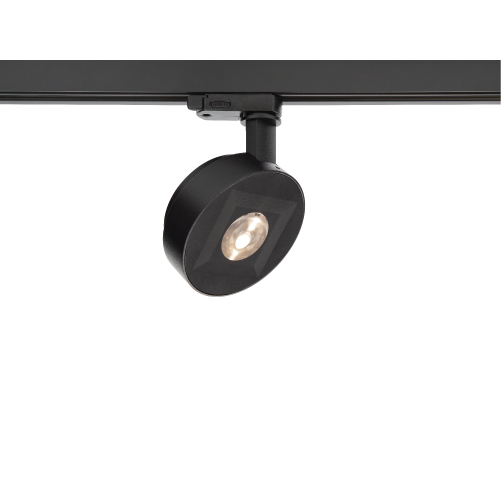

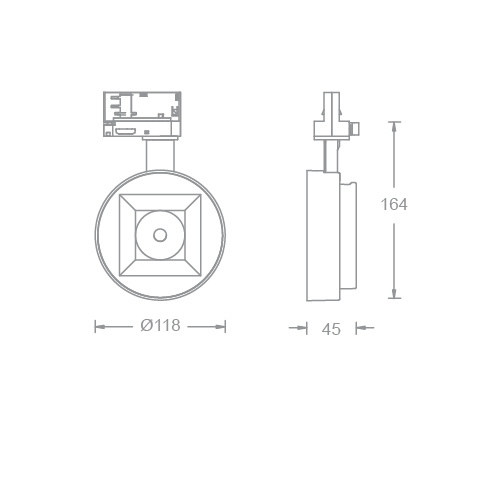

ATL71S FALCON ROUND | LD03 LED 3W | O On-boarding D 0-10V Dimming B Wireless A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |

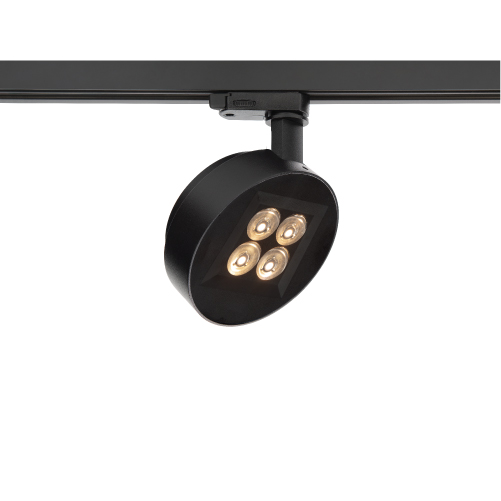

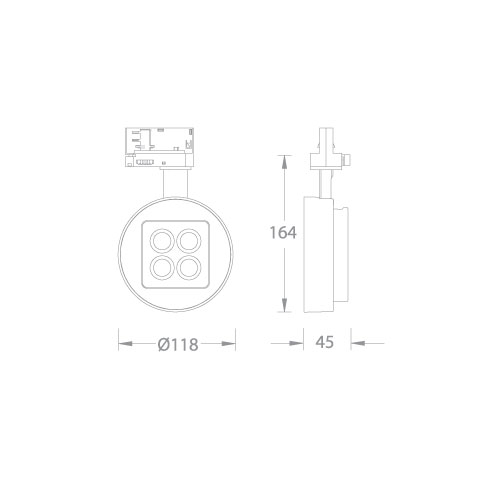

ATL71S FALCON ROUND | LD08 LED 8W LD12 LED 12W | O On-boarding D 0-10V Dimming B Wireless A DALI | S 7° 1 14° 2 20° 3 30° 4 40° G 20*55° E 10*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL72S FALCON ROUND | LD12 LED 12W | O On-boarding D 0-10V Dimming B Wireless A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |

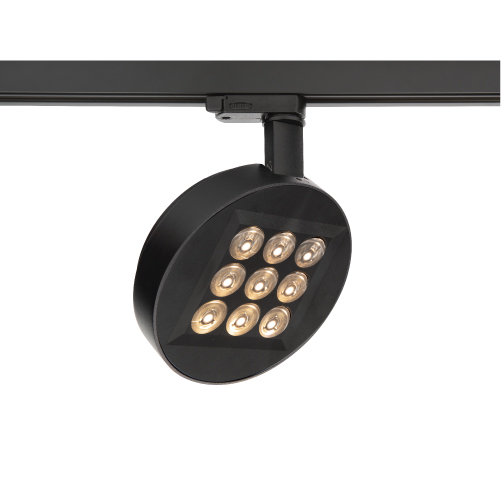

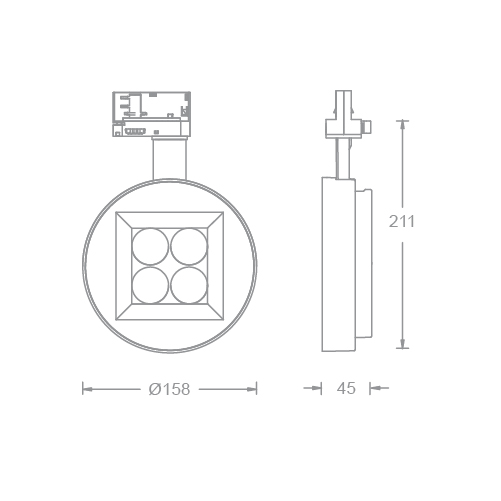

ATL72S FALCON ROUND | LD18 LED 18W LD27 LED 27W | O On-boarding D 0-10V Dimming B Wireless A DALI | S 7° 1 14° 2 20° 3 30° 4 40° G 20*55° E 10*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
ATL73S FALCON ROUND | LD27 LED 27W | O On-boarding D 0-10V Dimming B Wireless A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |

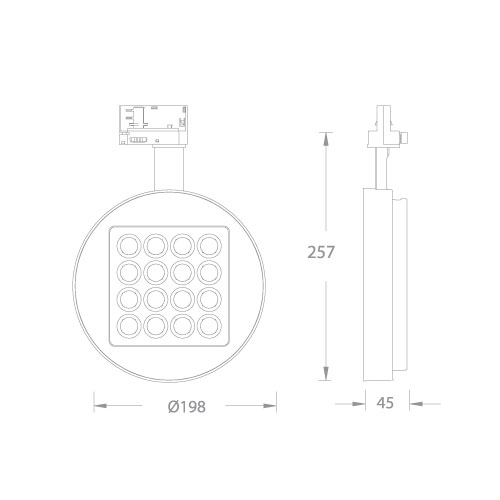

ATL73S FALCON ROUND | LD32 LED 32W LD43 LED 43W | O On-boarding D 0-10V Dimming B Wireless A DALI | S 7° 1 14° 2 20° 3 30° 4 40° G 20*55° E 10*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Sample：ATL73SLD32-O2930WT
