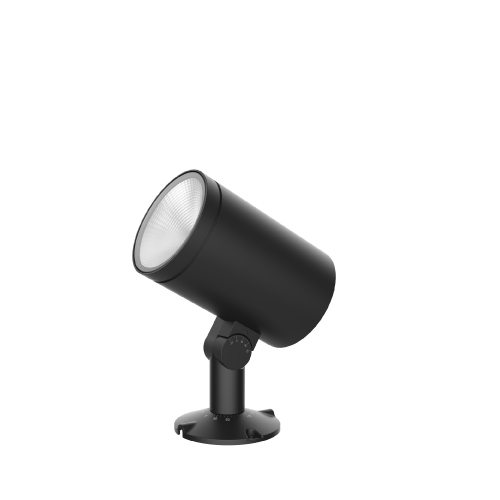

EP9NI/EP9SI/EP9MI/EP9LI Projector
The lamp body features a compact size and utilizes effective heat dissipation technology to extend the use of LEDs. The simple design and high performance optics are more in line with sustainable concepts. The series is available in a wide range of sizes and the latest LED technology allows for precise vertical and horizontal steering adjustments. Recommended for building facades as well as landscape and sculpture lighting applications.
Sichuan Academy of Fine Arts
Model | Power | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP9NI | 18 18W(Max) | COB | 1718 | EL ON-OFF 220V AC Power Supply ML DMX512 | 1 15° 2 29° 4 41° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP9SI | 32 32W(Max) | COB | 2968 | EL ON-OFF 220V AC Power Supply ML DMX512 | 1 18° 2 27° 3 39° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP9MI | 47 47W(Max) | COB | 5205 | EL ON-OFF 220V AC Power Supply ML DMX512 | 2 23° 3 35° 4 41° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EP9LI | 68 68W(Max) | COB | 7220 | EL ON-OFF 220V AC Power Supply ML DMX512 | 2 23° 3 35° 4 41° | 27 2700K 30 3000K 40 4000K | BK Black |
Example: EP9LI-68EL-330BK
