LIGNE III

AOC3N

Surface-mounted Wall Wash

AOC3N

The LIGNE III features a specialized lens or polarized optical system combined with an optimized LED arrangement, delivering uniform wall illumination with no dark spots or glare. It offers high-efficiency heat dissipation, low energy consumption, and a soft anti-glare lighting effect. With a DC 24V input, fixtures can be connected end-to-end for continuous installation. Ideal for recessed linear wall-grazing applications in offices, exhibition halls, hotels, and commercial public areas.

Features

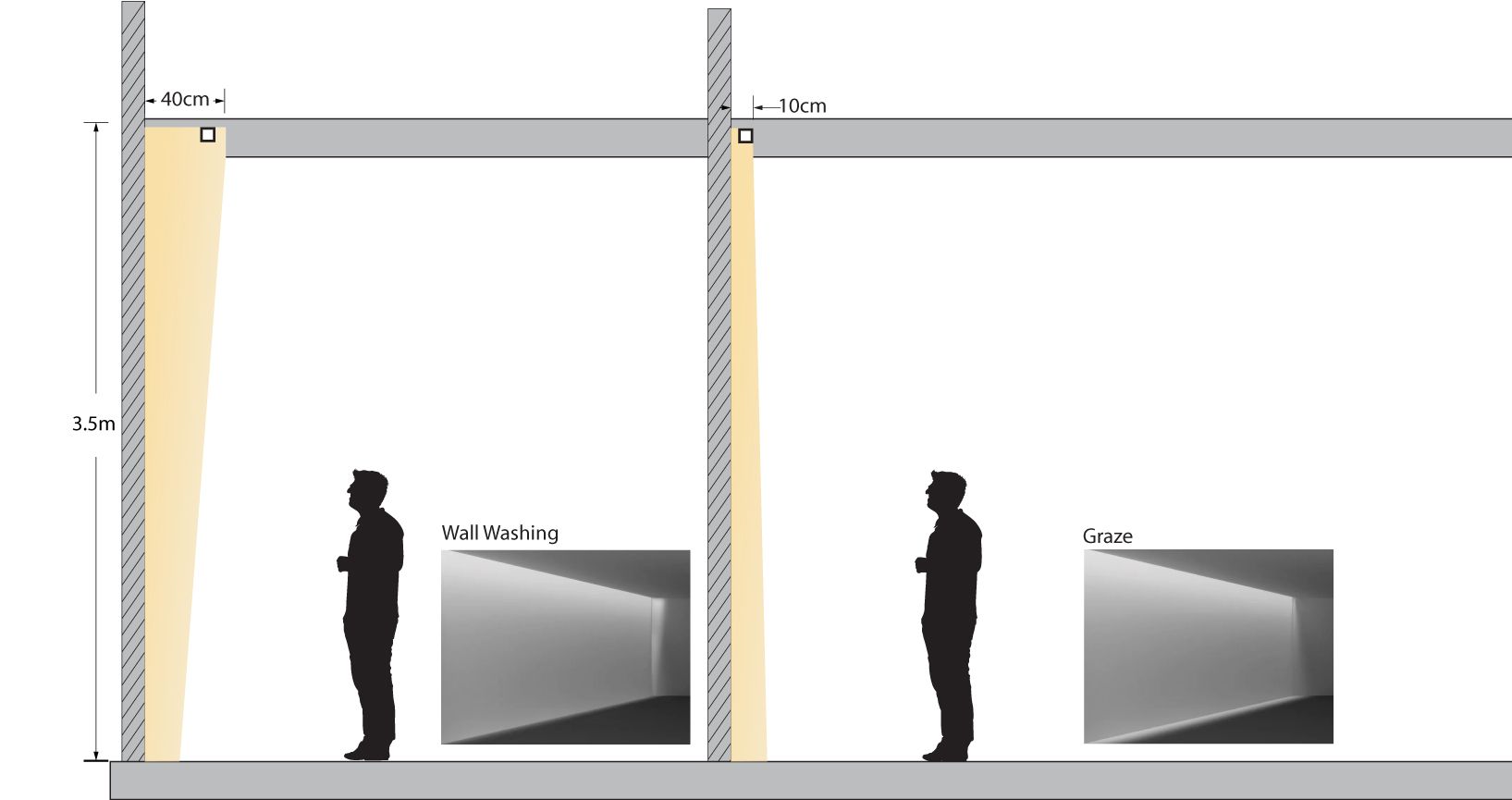

Simulation of Wall Washing and Wall Grazing Lighting Effects

Comparative simulation of lighting effects under different installation distances for wall washing and wall grazing.

Specifications

Model

Length (mm)

Power  (W)

Driver

Beam

CRI

CCT

Finish

AOC3N

02  244

05  05W

N  No Driver

W  Wall Washer

9       Ra90

A     Ra97(Ra≥95)



27    2700K

30   3000K

40   4000K

WT  White

BK   Black

Model

Length (mm)

Power  (W)

Driver

Beam

CRI

CCT

Finish

AOC3N

05  484

10  10W

N  No Driver

W  Wall Washer

9       Ra90

A     Ra97(Ra≥95)



27    2700K

30   3000K

40   4000K

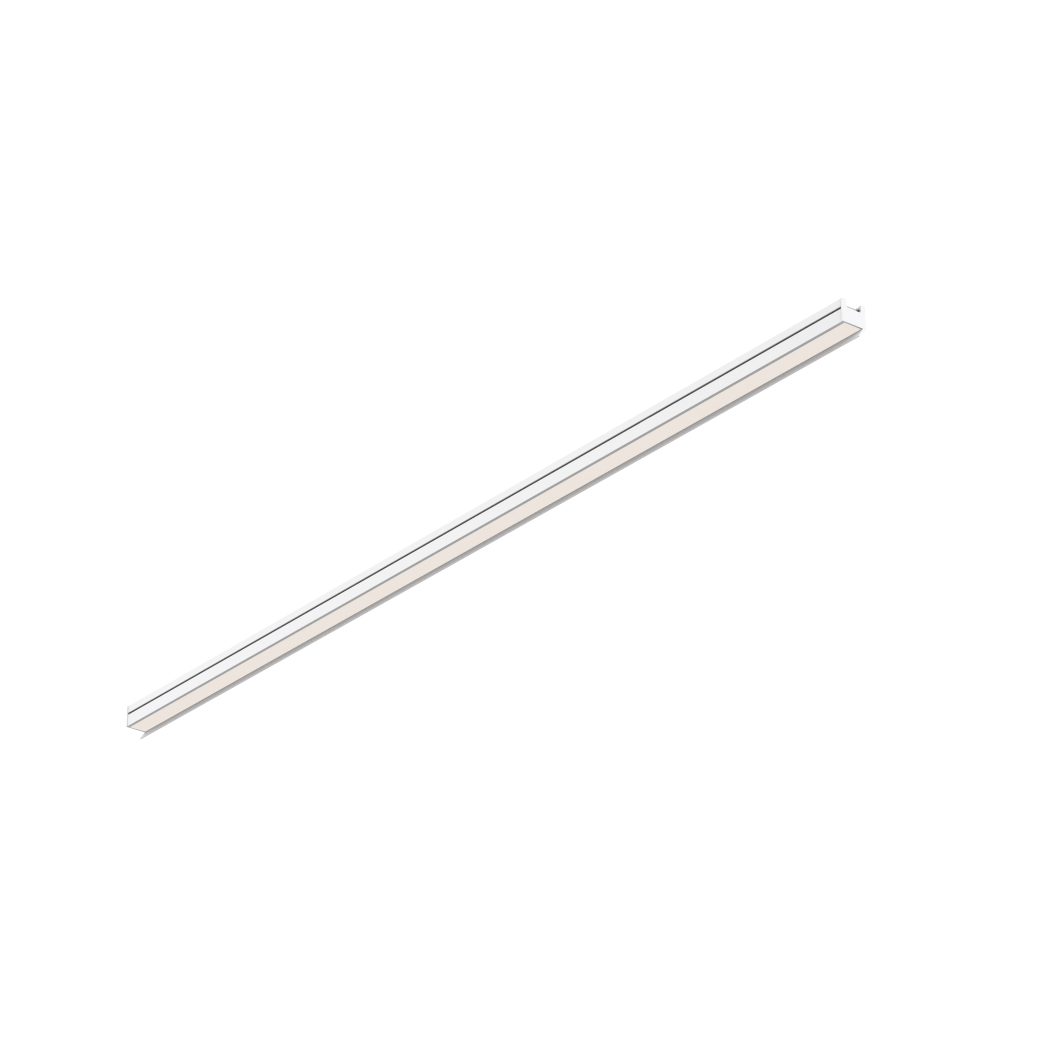

WT  White

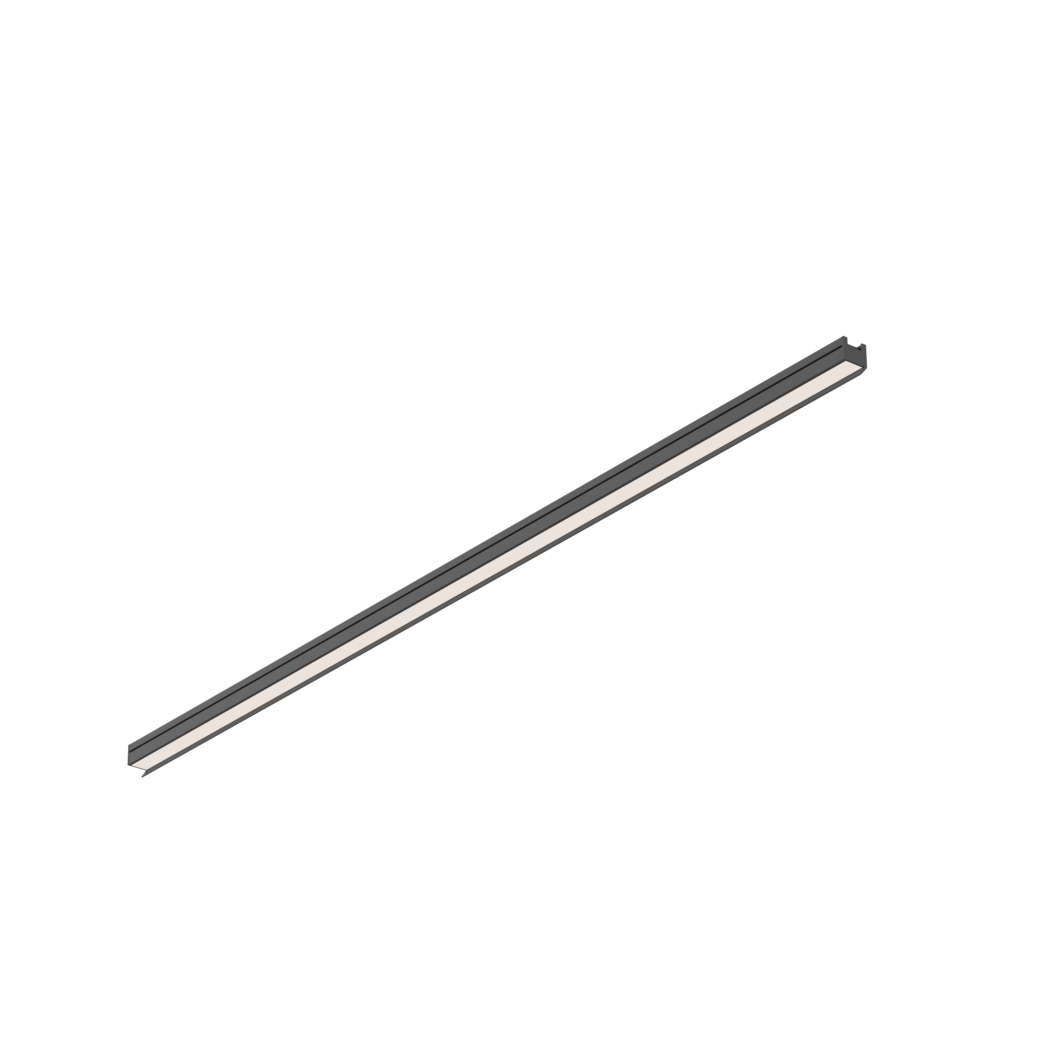

BK   Black

Model

Length (mm)

Power  (W)

Driver

Beam

CRI

CCT

Finish

AOC3N

10  964

20  20W

N  No Driver

W  Wall Washer

9       Ra90

A     Ra97(Ra≥95)



27    2700K

30   3000K

40   4000K

WT  White

BK   Black

Example: AOC3N-1020NW930WT, Note: Maximum daisy-chain length: 5m.
